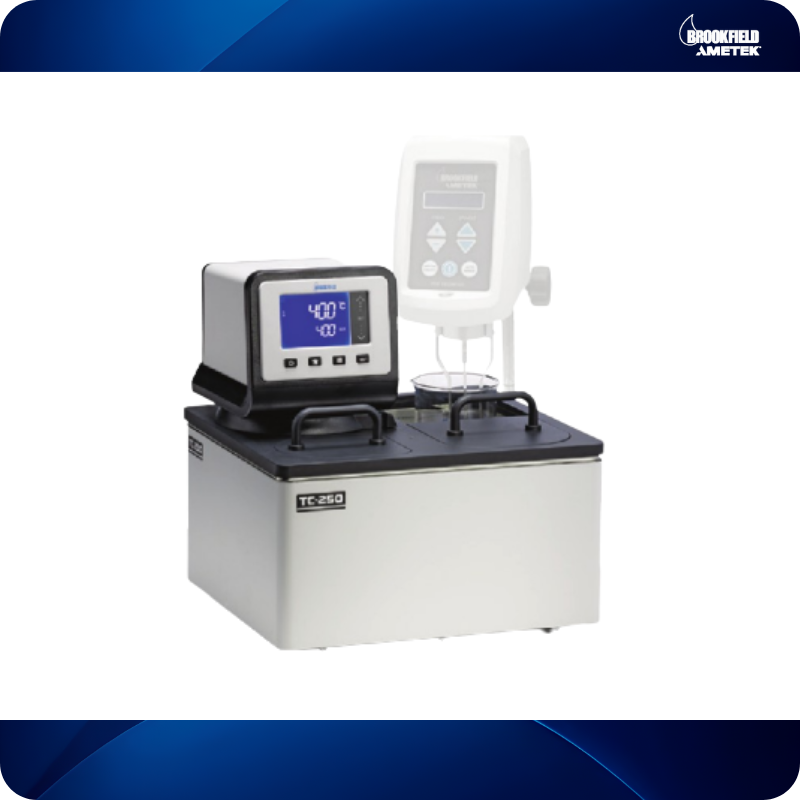

Brookfield offers a wide range of thermostatic and refrigerated baths that can accommodate both one or
several beakers and regulate a double jacket (SSA, ULA, ULA-DIN, Wells cone / plane viscometers and rheometers
RST-CC and RST-CPS) via an external circulation.
Brookfield offers a wide range of thermostatic and refrigerated baths that can accommodate both one or
several beakers and regulate a double jacket (SSA, ULA, ULA-DIN, Wells cone / plane viscometers and rheometers
RST-CC and RST-CPS) via an external circulation.
• Supplied with stainless steel support and guide for beaker and cover.
• Boosters, metal cover for beaker, optional plastic stopper.
• Optional heat transfer fluids, algaecide and cleaning solution.
MX Controller
Large LCD display
Fixed pump speed
Max temperature: 135 ° C
SD controller
Easy temperature adjustment in stand-alone mode
2 pump speeds
Control with RheocalcT software
Max temperature: 170 ° C
AP controller
Multilingual color touchscreen
Integrated help menu
Adjustable pump speed
Programmable in stand-alone mode
Control with RheocalcT software
Max temperature: 200 ° C
| Bath models |
TC-150 MX SD AP |
TC-250 MX SD AP |
TC-550 MX SD AP |
TC-650 MX SD AP |
||||||||
| Temp. mini (° C) | Tambiant + 10 * |
Tambiant + 10 * | -20 | -20 | ||||||||
| Temp. max (° C) | +135 | +150 | +150 | +135 | +150 | +150 | +135 | +170 | +200 | +135 | +170 | +200 |
| Stability (° C) | 0.07 | 0.04 | 0.01 | 0.07 | 0.04 | 0.01 | 0.07 | 0.04 | 0.01 | 0.07 | 0.04 | 0.01 |
| Beakers | 1 of 600 ml | 3 of 600 or 1000 ml | 1 of 600 ml | 1 of 600 ml | ||||||||
| External circulation | Yes | Yes | Yes | Yes | ||||||||
| Tank (L) | 6 | 10 | 7 | 7 | ||||||||
| Ext. (mm) | 340 x 206 x 380 ** | 353 x 343 x 380 ** | 590 x 412 x 412 ** | 541 x 221 x 617 ** | ||||||||
* optional TC-351 cooler allowing work down to -20 ° C ** 28mm higher height with MX controller
