SSA adapter for low volumes | Labomat
SSA adapter for low volumes

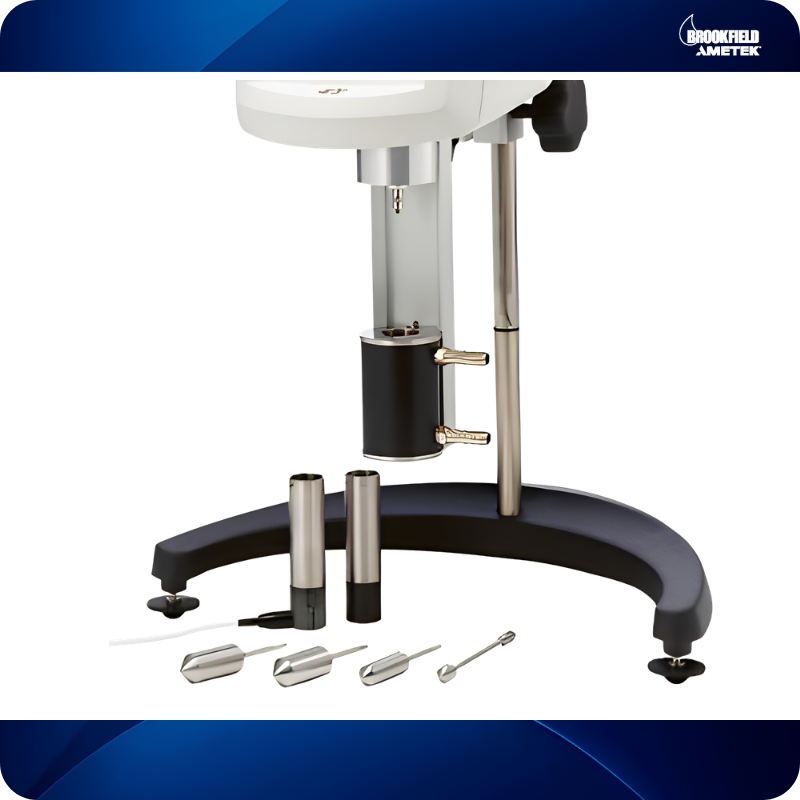

Adaptable to all Brookfield viscometers with classic geometry, the SSA (Small Sample Adapter) kit consists of a coaxial cylindrical mobile of your choice, a measuring chamber and a thermo-regulated double jacket by thermostatic bath.
Description
Adaptable to all Brookfield viscometers with classic geometry, the SSA (Small Sample Adapter) kit consists of a coaxial cylindrical mobile of your choice, a measuring chamber and a thermo-regulated double jacket by thermostatic bath.
- Measurement of absolute viscosity (known shear rate).
- Low volume of product required (2 to 16 ml).
- 3 versions available: without temperature probe, with temperature probe integrated into the chamber, SSA-DCU model accepting disposable aluminum chambers.
- Optional EZ-Lock connection (required for EXTRA and EZ-Lock viscometers).
|
Mobile: SC4-18 Chamber: SC4-13R (P) Volume: 6.7 ml Tx shear (s-1): 1.32xN |
Mobile: SC4-31 Chamber: SC4-13R (P) Volume: 9 ml Tx shear (s-1): 0.34xN |
Mobile: SC4-34 Chamber: SC4-13R (P) Volume: 9.4 ml Tx shear (s-1): 0.28xN |
Mobile: SC4-16 Chamber: SC4-8R (P) Volume: 4.2 ml Tx shear (s-1): 0.29xN |
Mobile: SC4-25 Chamber: SC4-13R (P) Volume: 16.1 ml Tx shear (s-1): 0.22xN |
Mobile: SC4-21 Chamber: SC4-13R (P) Volume: 7.1 ml Tx shear (s-1): 0.93xN |
Mobile: SC4-27 (D) Chamber: SC4-13R (P) Volume: 10.4 ml Tx shear (s-1): 0.34xN |
Mobile: SC4-15 Chamber: SC4-7R (P) Volume: 3.8ml Tx shear (s-1): 0.48xN |
Mobile: SC4-28 Chamber: SC4-13R (P) Volume: 11 ml Tx shear (s-1): 0.28xN |
Mobile: SC4-29 Chamber: SC4-13R (P) Volume: 13.5 ml Tx shear (s-1): 0.25xN |
Mobile: SC4-14 Chamber: SC4-6R (P) Volume: 2.1ml Tx shear (s-1): 0.40xN |
|
|
Templates viscometer |
Viscosity range (cP) depending on the mobile and the associated chamber | ||||||||||
| LVDV3T | 1.2-30K | 12-300K | 24-600K | 48-1.2M | 192-4.8M | ||||||
| LVDV2T | 1.5-30K | 15-300K | 30-600K | 60-1.2M | 240-4.8M | ||||||
| LVDV1M | 3-10K | 30-100K | 60-200K | 120-400K | 800-1.6M | ||||||
| LVDVE | 3-10K | 30-100K | 60-200K | 120-400K | 800-1.6M | ||||||
| LVT | 5-10K | 50-100K | 100-200K | 200-400K | 800-1.6M | ||||||
| RVDV3T | 20-500K | 100-2.5M | 200-5M | 250-5M | 400-10M | 500-12.5M | |||||
| RVDV2T | 20-500K | 125-2.5M | 250-5M | 250-5M | 500-10M | 625-12.5M | |||||
| RVDV1M | 50-170K | 250-830K | 500-1.7M | 500-1.7M | 1K-3.3M | 1.25K-4.2M | |||||
| RVDVE | 50-170K | 250-830K | 500-1.7M | 500-1.7M | 1K-3.3M | 1.25K-4.2M | |||||
| RVT | 50-100K | 250-500K | 500-1M | 500-1M | 1K-2M | 1.25K-2.5M | |||||
| HADV3T | 40-1M | 250-5M | 400-10M | 400-10M | 800-20M | 1K-25M | |||||
| HADV2T | 50-1M | 250-5M | 500-10M | 500-10M | 1K-20M | 1.25K-25M | |||||
| HADV1M | 100-300K | 500-1.7M | 1K-3.3M | 1K-3.3M | 2K-6.7M | 2.5K-8.3M | |||||
| HADVE | 100-300K | 500-1.7M | 1K-3.3M | 1K-3.3M | 2K-6.7M | 2.5K-8.3M | |||||
| HAT | 100-200K | 500-1M | 1K-2M | 1K-2M | 2K-4M | 2.5K-5M | |||||
| HBDV3T | 160-4M | 800-20M | 1.6K-40M | 1.6K-40M | 3.2K-80M | 4K-100M | |||||
| HBDV2T | 200-4M | 1K-20M | 2K-40M | 2K-40M | 4K-80M | 5K-100M | |||||
| HBDV1M | 400-1.3M | 2K-6.7M | 4K-13.3M | 4K-13.3M | 8K-26.7M | 10K-33.3M | |||||
| HBDVE | 400-1.3M | 2K-6.7M | 4K-13.3M | 4K-13.3M | 8K-26.7M | 10K-33.3M | |||||
| HBT | 400-800K | 2K-4M | 4K-8M | 4K-8M | 8K-16M | 10K-20M | |||||
K = 1000 M = million N = speed in RPM P = chamber equipped with a temperature probe D = disposable mobile as an option
NC = not communicated for historical reasons but it is possible to use any mobile phone and associated room with any range of couples
(digital viscometers and rheometers will automatically calculate the viscosity)
