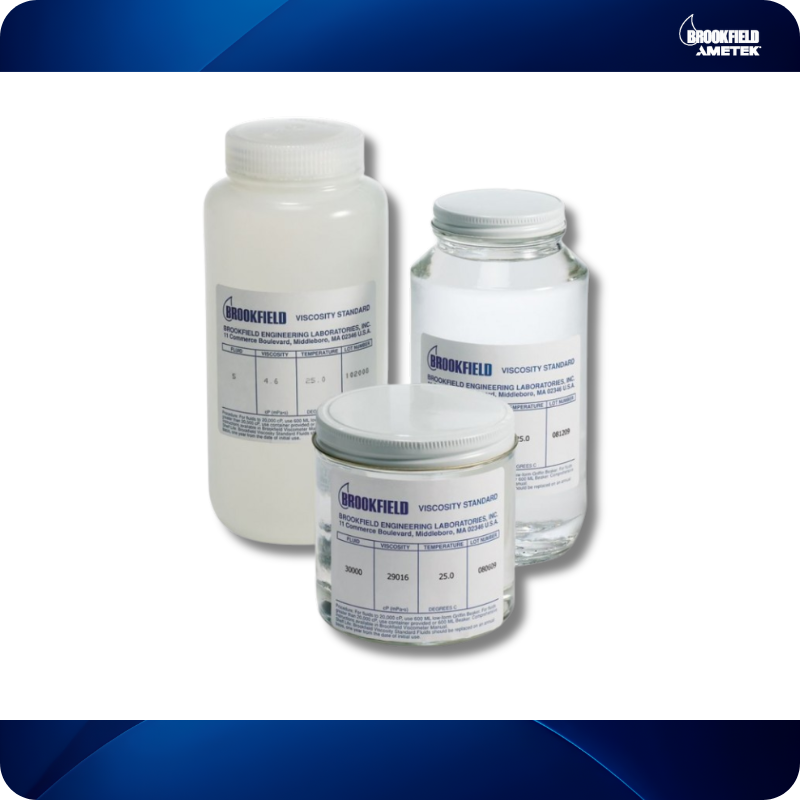

Standard oils with Newtonian behavior certified NIST used for the control of viscometers.
Standard oils with Newtonian behavior certified NIST used for the control of viscometers.
| Standard silicone oils | Standard mineral oils |
|
For standard rotary viscometers at low shear rate ( |
For high speed gradient viscometers (> 500 sec-1), CAP viscometers, KU-2 and RST rheometers |
|
Certified at 25 ° C, as desired (cP): 5, 10, 50, 100, 500, 1000, 5000, 12,500, 30,000, 60,000, 100,000 |
Certified at 25 ° C, as desired (cP): 29, 200, 400, 600, 1060, 2000, 10200, 21000, 73000, 200000, 360000 |
|
Certified at 25 °, 93.3 ° and 149 ° C, as desired (cP): 30,000 (25 ° C) / 9,000 (93.3 ° C) / 4,500 (149 ° C) 60,000 (25 ° C) / 18,000 (93.3 ° C) / 9,000 (149 ° C) 100,000 (25 ° C) / 30,000 (93.3 ° C) / 15,000 (149 ° C) |
CAP specific oils certified at 25 ° C or 60 ° C |
|
Specific KU oils certified at 25 ° C |
|
|
RST specific oils certified at 25 ° C |
Special oils available - custom-made silicone oils possible between 5 and 60,000 cP certified at 25 ° C or between 10 and 80 ° C
The safety data sheet for silicone oils is available in the attached documents
Safety data sheets for other oils are available with the following link: BROOKFIELD OILS SDS
Brookfield offers a wide range of thermostatic and refrigerated baths that can accommodate both one or several beakers and regulate a double jacket (SSA, ULA, ULA-DIN, Wells cone / plane viscometers and rheometers RST-CC and RST-CPS) via an external circulation.
Allows the rapid assembly / disassembly of standard mobiles on all Brookfield viscometers with conventional geometry and the Helipath system by sliding the fixing ring holding the 2 connections.
Designed for measuring the absolute viscosity and the rheological properties of very pasty products. Used to simulate extrusion.
Adaptable to all Brookfield viscometers, the ULA (Ultra Low Adapter) kit allows precise and repeatable measurement of Newtonian and non-Newtonian products of low viscosities (up to 1 cP). A coaxial cylindrical mobile rotates inside a chamber containing the sample and having a removable cap allowing direct use in a beaker. When in place, the then closed...
System equipped with an oven intended for viscosity measurements up to 300 ° C by coaxial geometry.
Adaptable to all Brookfield viscometers with classic geometry, the SSA (Small Sample Adapter) kit consists of a coaxial cylindrical mobile of your choice, a measuring chamber and a thermo-regulated double jacket by thermostatic bath.
The new Helipath HPQA Ametek Brookfield support is an innovative, motorized, quick-action stand allowing: Advanced Helipath testing Quick adjustment of the viscometer position
Standard oils with Newtonian behavior certified NIST used for the control of viscometers.
