Thermosel system for high temperature measurements | Labomat

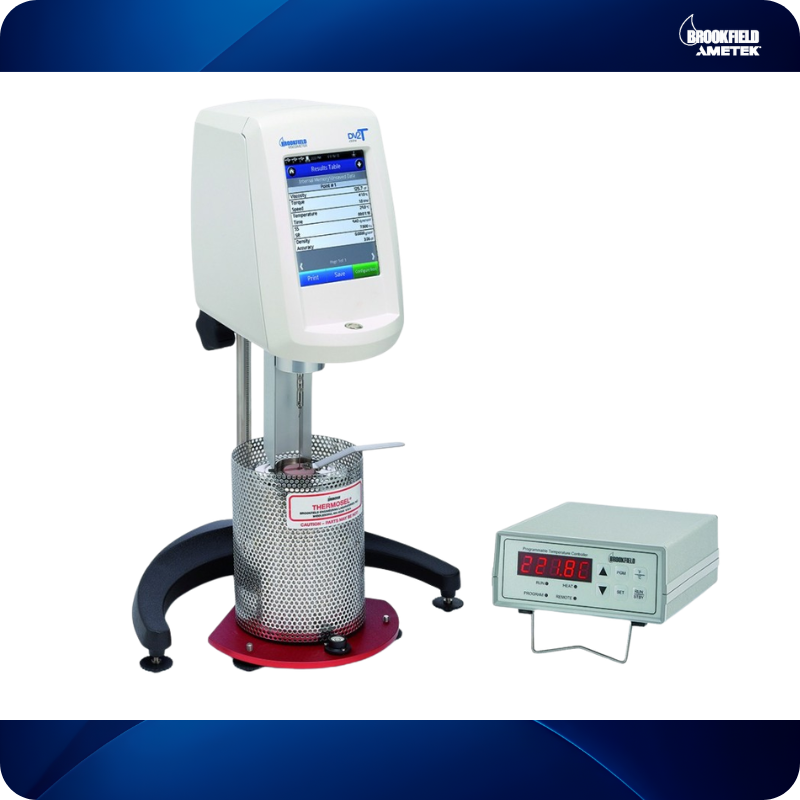

Thermosel system for high temperature measurements
System equipped with an oven intended for viscosity measurements up to 300 ° C by coaxial geometry.
Description
System equipped with an oven intended for viscosity measurements up to 300 ° C by coaxial geometry.
- Adaptable to all Brookfield viscometers with classic geometry.
- Measurement of absolute viscosity (known shear rate).
- Low volume of product required (7 to 13 ml).
- PC control possible for DV2T and DV3T viscometers coupled to RheocalcT.
- Temperature control possible from the DV2T and DV3T viscometers.
- Supplied in a case with a secure oven with insulating capsule, a temperature controller equipped with a temperature probe, a removable measuring chamber, 5 disposable chambers, a coaxial cylindrical mobile of your choice and extraction tools.
- Disposable aluminum chambers available as an option.
- Optional EZ-Lock connection (required for EXTRA and EZ-Lock viscometers).
|
Mobile: SC4-18 Volume: 8 ml Tx shear (s-1): 1.32xN |
Mobile: SC4-31 Volume: 10ml Tx shear (s-1): 0.34xN |
Mobile: SC4-34 Volume: 9.5 ml Tx shear (s-1): 0.28xN |
Mobile: SC4-21 Volume: 8 ml Tx shear (s-1): 0.93xN |
Mobile: SC4-27 (D) Volume: 10.5 ml Tx shear (s-1): 0.34xN |
Mobile: SC4-28 Volume: 11.5 ml Tx shear (s-1): 0.28xN |
Mobile: SC4-29 Volume: 13 ml Tx shear (s-1): 0.25xN |
Mobile: HT-DIN-81 Volume: 7 ml Tx shear (s-1): 1.29xN |
|
|
Viscometer models |
Viscosity range (cP) depending on the mobile | |||||||
| LVDV3T | 1.2-30K | 12-300K | 24-600K | 1-10K | ||||
| LVDV2T | 1.5-30K | 15-300K | 30-600K | 3.4-10K | ||||
| LVDV1M | 3-10K | 30-100K | 60-200K | 3.4-10K | ||||
| LVDVE | 3-10K | 30-100K | 60-200K | N / A | ||||
| LVT | 5-10K | 50-100K | 100-200K | 5.7-10K | ||||
| RVDV3T | 20-500K | 100-2.5M | 200-5M | 400-10M | 14.6-10K | |||
| RVDV2T | 25-500K | 125-2.5M | 250-5M | 500-10M | 36.5-10K | |||
| RVDV1M | 50-170K | 250-830K | 500-1.7M | 1K-3.3M | 36.5-10K | |||
| RVDVE | 50-170K | 250-830K | 500-1.7M | 1K-3.3M | N / A | |||
| RVT | 50-100K | 250-500K | 500-1M | 1K-2M | 36.5-10K | |||
| HADV3T | 40-1M | 200-5M | 400-10M | 800-20M | 29.2-10K | |||
| HADV2T | 50-1M | 250-5M | 500-10M | 1K-20M | 73-10K | |||
| HADV1M | 100-300K | 500-1.7M | 1K-3.3M | 2K-6.7M | 73-10K | |||
| HADVE | 100-300K | 500-1.7M | 1K-3.3M | 2K-6.7M | N / A | |||
| HAT | 100-200K | 500-1M | 1K-2M | 2K-4M | 73-10K | |||
| HBDV3T | 160-4M | 800-20M | 1.6K-40M | 3.2K-80M | 116.8-10K | |||
| HBDV2T | 200-4M | 1K-20M | 2K-40M | 4K-80M | 292-10K | |||
| HBDV1M | 400-1.3M | 2K-6.7M | 4K-13.3M | 8K-26.7M | 292-10K | |||
| HBDVE | 400-1.3M | 2K-6.7M | 4K-13.3M | 8K-26.7M | N / A | |||
| HBT | 400-800K | 2K-4M | 4K-8M | 8K-16M | 292-10K | |||
K = 1000 M = million N = speed in RPM P = chamber equipped with a temperature probe D = disposable mobile as an option
NC = not communicated for historical reasons but it is possible to use the mobiles mentioned with all these viscometers (the digital viscometers and rheometers will automatically calculate the viscosity)
