ULA / ULA-DIN adapters for low viscosities | Labomat
ULA / ULA-DIN adapters for low viscosities

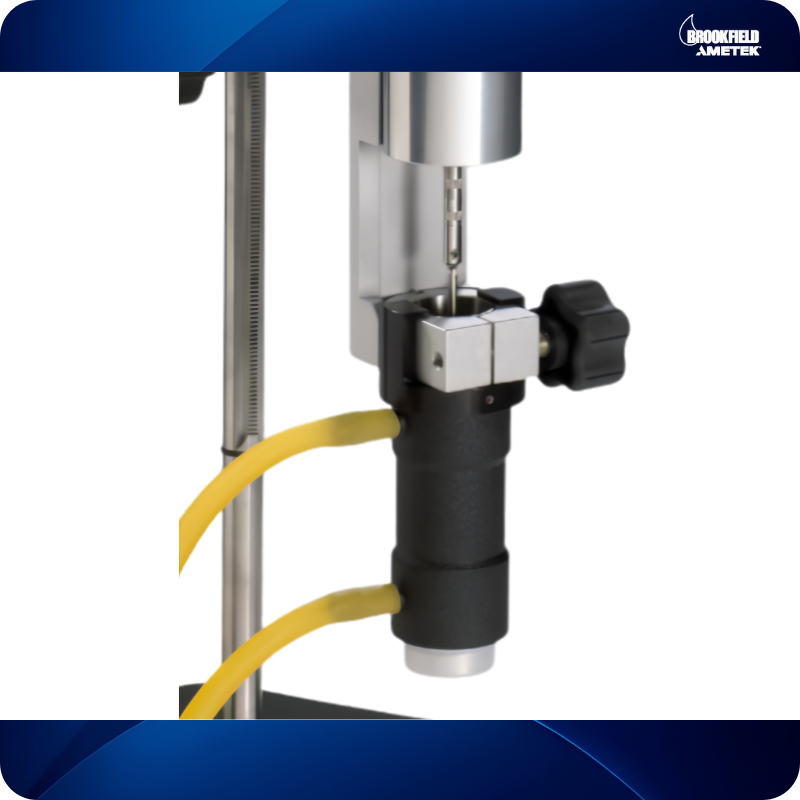

Adaptable to all Brookfield viscometers, the ULA (Ultra Low Adapter) kit allows precise and repeatable measurement of Newtonian and non-Newtonian products of low viscosities (up to 1 cP). A coaxial cylindrical mobile rotates inside a chamber containing the sample and having a removable cap allowing direct use in a beaker. When in place, the then closed chamber can be thermo-regulated by a thermostatic bath in direct immersion or connection to the bath via the double jacket.
Description
Adaptable to all Brookfield viscometers, the ULA (Ultra Low Adapter) kit allows precise and repeatable measurement of Newtonian and non-Newtonian products of low viscosities (up to 1 cP). A coaxial cylindrical mobile rotates inside a chamber containing the sample and having a removable cap allowing direct use in a beaker. When in place, the then closed chamber can be thermo-regulated by a thermostatic bath in direct immersion or connection to the bath via the double jacket.
- Measurement of absolute viscosity (known shear rate).
- Low volume of product required (16 to 20 ml).
- ULA-DIN model to meet DIN 53019 standard (set of 3 mobiles supplied).
- Optional EZ-Lock connection (required for EXTRA and EZ-Lock viscometers).
| LVT |
LVDVE LVDV1M |
LVDV2T LVDV3T |
RVT RVDVE RVDV1M |
RVDV2T RVDV3T |
HAT HADVE HADV1M |
HADV2T HADV3T |
HBT HBDVE HBDV1M |
HBDV2T HBDV3T |
||
| Templates |
Tx shear (s-1) |
Viscosity range (cP) depending on the viscometer | ||||||||
| ULA | 1.224xN | 1-2K | 1-2K | 1-2K | 6.4-2K | 3-2K | 12.8-2K | 6-2K | 51.2-2K | 24-2K |
| ULA-DIN | 1.29xN | 1.9-37.9K | 1.2-37.9K | 1-50K | 12.2-50K | 5-50K | 24.4-50K | 10-50K | 97.6-50K | 40-50K |
Demonstration video:
