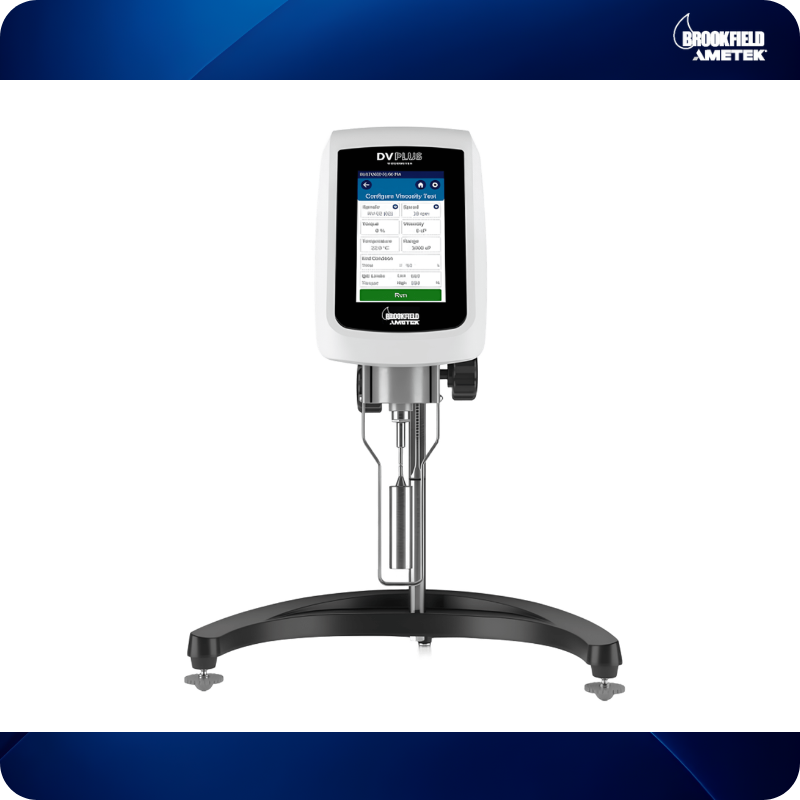

DVPlus viscometers are Budget viscometer with advanced best-in-class feature

They have a large 5-inch touch screen, a very easy-to-use interface perfectly suited to use in the laboratory or in production.

With DVPlus viscometers you get: high precision, fast response time and reproducible results.

Can be interfaced with a computer using the optional DVPlus Connect App.

Main features

• 5-inch color touchscreen with a dynamic user interface for direct access to features
• Simple and user-friendly interface with advanced controls and real-time test indicator

• Display of the following information:
• Viscosity (cP, mPa∙s, P, Pa∙s)
• Temperature (°C, °F or K)
• Torque (%, mNm, Dyne∙cm)
• Speed/Spindle
• Measuring range
• Quality control limits

• USB and Bluetooth* interface for use with the DVPlus Connect app
• Possibility of creating an offset of the temperature probe up to ±5°C
• Choice of multiple languages including English, French, German, Portuguese, Chinese, Japanese and Spanish
• 740 speeds for extensive testing possibilities
• Optional RTD temperature probe (DVP-94Y)
• Direct access to the time delay function (Up to a defined viscosity or torsion, for a defined time or until a certain temperature).

• Automatic full scale calculation (Full Scale Range FSR: 100%) Maximum viscosity measured with spindle/speed combination
• Accuracy of ±1.0% of range
• ±0.2% repeatability

Viscometers exist in different measurement ranges depending on the internal sensor used:

• LV is intended for low viscosity products such as: inks, oils and solvents.
• RV is intended for medium viscosity products such as: creams, foods and paints.
• HA is intended for high viscosity products such as: gels, chocolate and epoxies.
• HB is intended for high viscosity products such as: asphalt, caulking compounds, molasses, glues.

Special sensors are also available on request.

Optional DVPlus Connect App

DVPlus Connect is AMETEK Brookfield's new time-saving application that monitors and records test data.

The app provides an easy way to view test data and create permanent test records.

• Monitor tests in real time View and save test data
• USB and Bluetooth connection options*
• Available for Windows 10 and 11 (iOS and Android coming soon)
• Print via PC *if available

DVPlus viscometers are delivered with:

• DVPlus Viscometer
• Box of 6 spindles (RV/HA/HB 2 to RV/HA/HB 7) or 4 spindles(LV1 to LV4)
• Spindle Guard Leg (except for models) HA or HB
• Laboratory stand (model G)
• Carrying case
• Calibration certificate
• and instruction manual

They are offered:

• With Point&Jewel or ball bearing suspension system (except LVDVPlus)
• With threaded fixing or magnetic coupling of the sindle
• With USB or Bluetooth connectivity
