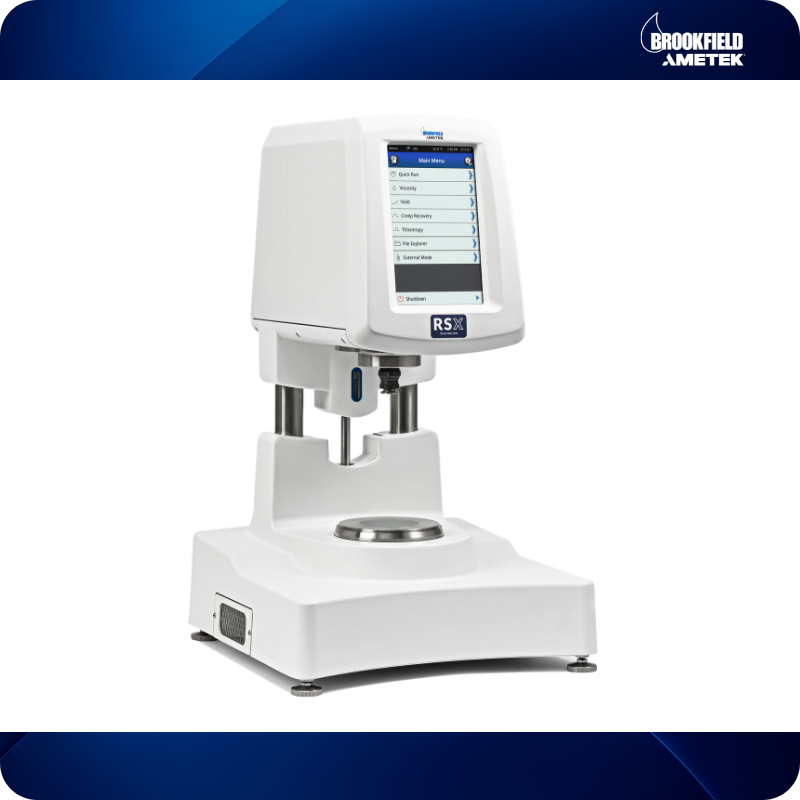

RSX touch screen rheometers can work in velocity, velocity gradient or imposed stress, thus allowing the rheological characterization of viscous or visco-elastic products. Available in several measurement geometries: cone/plane (RSX-CPS Cone/Plan model), plane/plane (RSX-CPS Plan/Plan model), coaxial cylinders (RSX-CC model) or with vane spindles (RSX model -SST), they allow powerful flow characterization tools (simple measurements, speed ramps, shear or stress and/or temperature ramps and programming loops).

• Wide range of velocity and stress gradients allowing in-depth analysis of rheological properties.

• 4 measurement geometries: cone / plane, plane / plane, coaxial or movable finned cylinders (for textured semi-solid products and products with suspended particles).

• Torque: up to 200 mNm.

• Speed gradient: from 0.013 to 7800 sec-1.

• Speed: from 0.01 to 1300 rpm.

• LCD touch screen with graphic display.

• Low volume of product required.

• Quick connection of the mobile or cone, automatic recognition by barcode.

• Can be used in stand-alone mode or controlled via the Rheo3000 software.

• Thermo-regulated by thermostatically controlled bath.

• Supplied with NIST connected calibration certificate.

Model RSX-CPS

• Temperature control via a bath (from -20 to 200 ° C) or by Peltier effect (PA Peltier Air model from 20 to 180 ° C or

PO Peltier model Oil from 0 to 180 ° C) or by electrical resistance (EH model from 40 to 250 ° C).

•Automatic adjustment of the cone / plane or plane / plane distance depending on the version.

RSX-CC model

• Temperature control from -20 to 180 ° C via a bath or by external circulation via the FTKY3 double jacket.

RSX-SST model

• Determination of the yield point, shear modulus, recovery, creep, firmness, elasticity, plasticity, consistency and texture.
