Standard silicone and mineral oils
Standard oils with Newtonian behavior certified NIST used for the control of viscometers.
Brookfield CAP2000+ Cone-Plate Viscometers | Labomat

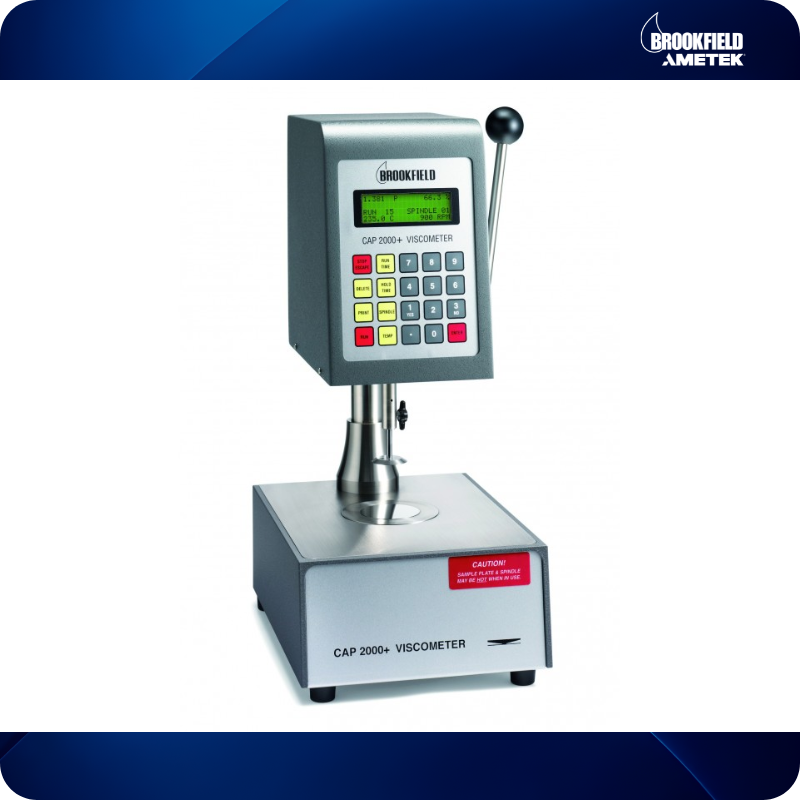

Brookfield CAP2000+ Cone-Plate Viscometers
Viscosimètre ICI Brookfield CAP
The Brookfield CAP 2000+ viscometers are ICI type viscometers with cone-plate geometry and imposed speed allowing rapid measurement, at controlled temperature, on small sample volumes. This is a characterization at high shear rate on products such as paints, varnishes, inks, resins and petroleum products.
Description
The Brookfield CAP 2000+ viscometers are ICI type viscometers with cone-plate geometry and imposed speed allowing rapid measurement, at controlled temperature, on small sample volumes. This is a characterization at high shear rate on products such as paints, varnishes, inks, resins and petroleum products.
• Ability to test at high speed gradient on low sample volumes (< 1 ml).
• Digital display of viscosity in Poises.
• Quick control of the plate temperature by Peltier effect.
• Setting of the pre-measurement and measurement time.
• Parallel port for printer.
• Supplied with 1 cone of your choice and NIST connected calibration certificate.
• Low Torque (LT) version available for low viscosities.
• Mineral standard oils certified at 25°C or 60°C for calibration of optional cones.
Brookfield cone-plate Rheometer CAP2000 +
• Multi-speed model equipped with an RS232 serial port for research and development.
• Variable speed from 5 to 1000 rpm (from 10 to 13300 sec-1).
• 2 models: CAP2000 + L from 5 to 75°C and CAP2000 + H from 50 to 235°C (increments of 0.1°C).
• Optional Capcalc32 software for controlling the viscometer, data acquisition and graphic display;
loops for performing repetitive tasks; mathematical models.
|
Cone: CAP-01 Volume: 67 µL Shear rate (s-1): 13.3xN |
Cone: CAP-02 Volume: 38 µL Shear rate (s-1): 13.3xN |
Cone: CAP-03 Volume: 24 µL Shear rate (s-1): 13.3xN |
Cone: CAP-04 Volume: 134 µL Shear rate (s-1): 3.3xN |
Cone: CAP-05 Volume: 67 µL Shear rate (s-1): 3.3xN |
Cone: CAP-06 Volume: 30 µL Shear rate (s-1): 3.3xN |
Cone: CAP-07 Volume: 1700 µL Shear rate (s-1): 2xN |
Cone: CAP-08 Volume: 400 µL Shear rate (s-1): 2xN |
Cone: CAP-09 Volume: 100 µL Shear rate (s-1): 2xN |
Cone: CAP-10 Volume: 170 µL Shear rate (s-1): 5xN |
|
|
Templates viscometer |
Viscosity range (Poise) depending on the cone | |||||||||
|
CAP2000 + 5-1000 rpm |
0.2-375 | 0.4-750 | 0.8-1.5K | 1-3K | 3-6K | 8-15K | 0.78-625 * | 3.13-, 5K * | 12.5-10K * | 1-1K * |
|
CAP2000 + LT 5-1000 rpm |
0.2-16 | 0.2-32 | 0.2-66 | 0.2-130 | 0.2-260 | 0.2-660 | 0.2-26 | 0.2-108 | 0.2-440 | 0.2-44 |
K = 1000 N = speed in RPM * viscosity range at a maximum speed of 400 rpm recommended for these cones ** special speed
Product Details
Viscosimètre ICI Brookfield CAP
