K Lox manual applicator

Applicateur manuel K Lox

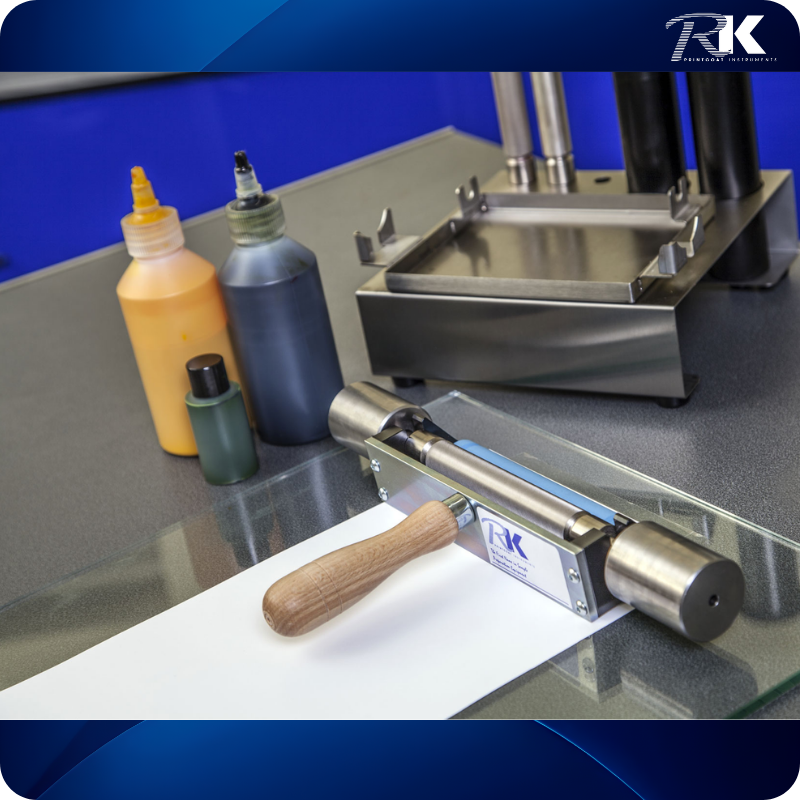

The Hand K Lox is a simple and economical steel cylinder applicator, mechanically engraved and chromed (anilox). It allows rapid flexographic proofs or varnish applications.

Contactez-nous

CONTACT

SOCIETE

Description

The Hand K Lox is a simple and economical steel cylinder applicator, mechanically engraved and chromed (anilox). It allows rapid flexographic proofs or varnish applications.

• Starter kit (ref. KLOX 01S): includes 1 frame, 2 weights, 1 standard engraved steel cylinder and 1 standard rubber cylinder (EPDM, 50 Shore).

• Complete kit (ref. KLOX 02S): includes 1 frame, 2 weights, 3 standard engraved steel cylinders, 2 standard rubber cylinders (EPDM, 50 Shore) and a storage / cleaning rack.

• The application width is 115 mm.

Cylinders engraved in

standard steel

(lignature / cylinder number)

Engraving

Cell volume

cm³ / m²

nb cells / cm nb cells / inch
400/5 160 400 4.3
200/12 80 200 10.2
180/14 70 180 16.6
140/10 55 140 20.2
100/18 40 100 39.1

Non-standard engraved steel cylinders on request.

Etchings (specified by the number of cells / cm and by the volume of the cell, ref. KLOX20) and thicknesses (specified in wet film microns, ref. KLOX 21).

Demonstration video:

RK K LOX PROOFER

Product Details
Applicateur manuel K Lox
Attachments
Download
