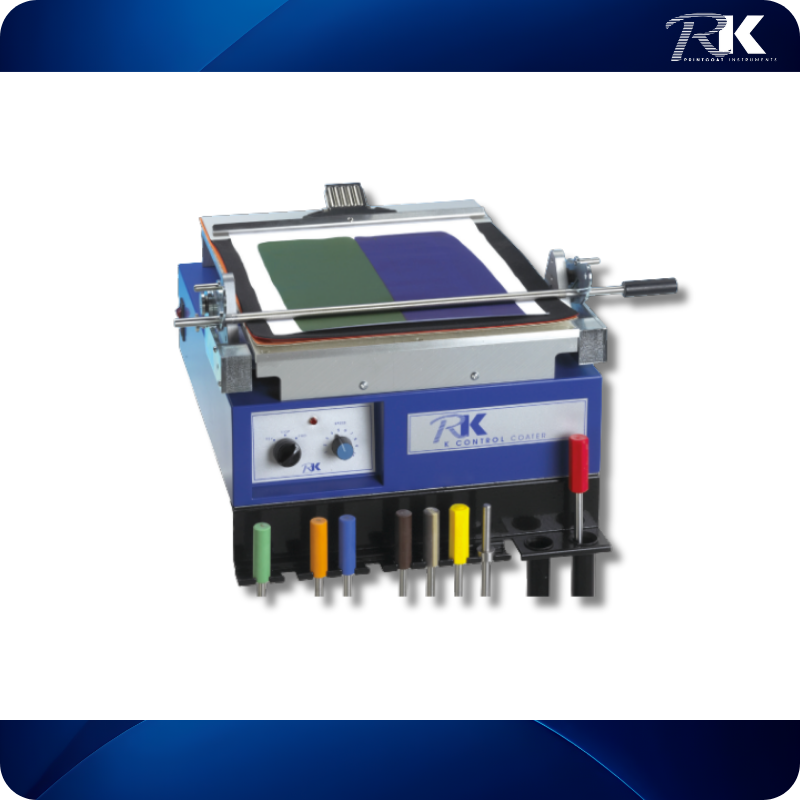

The K Control Coater or KCC provides fast, highly accurate and reproducible samples of liquid products. Ideal when repeatability is essential, for example for basic color creation or when a number of operators are involved. The coatings are applied by spiral bars.

• Wet deposit between 4 and 500 µm.

• Repeatability through controlled speed and pressure adjustment.

• Meets ASTM D823-53 and BS 3900 standards.

• Electric or pneumatic motor for areas at risk.

• Speed adjustable from 2 to 15 m/min.

• Base topped with a rubber table, foam and transparent melinex protection sheet.

• Other optional tables: multi-perforated aluminum vacuum table (for standard films), peripheral rubber vacuum table (for fragile or very thin films); table
   magnetic (for metal panels); heating table (up to 150°C) and heated vacuum table (up to 150°C). The last 2 models mentioned are not available for the KCC202 applicator.

• Supplied with a set of spiral bars n° 1 to n° 8, a calibration bar (to adjust the pressure optimally) and a bar support fitted with 2 cleaning tubes.

Another KCC303 model available with a larger application surface: width 350 x length 440 mm, and an adjustable speed from 1 to 39 m/min.

Spiral bars are also called: bar coater or Meyer's bar or coating bar.

• Standard wet film thicknesses (close wound): 4 (white), 6 (yellow), 12 (red), 24 (green), 40 (black), 50 (horn), 60 (orange), 80 (brown) ), 100 (blue) and 120 (ocher) microns.

Standard wet film thicknesses (spirally wound): 150, 200, 300, 400 and 500 microns.

Standard and non standard wet film thicknesses available (close wound): 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38 , 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 76, 80, 84, 88, 90, 92, 96, 100, 104, 108, 110, 112, 116, 120, 128, 130, 140 and 150 microns.
