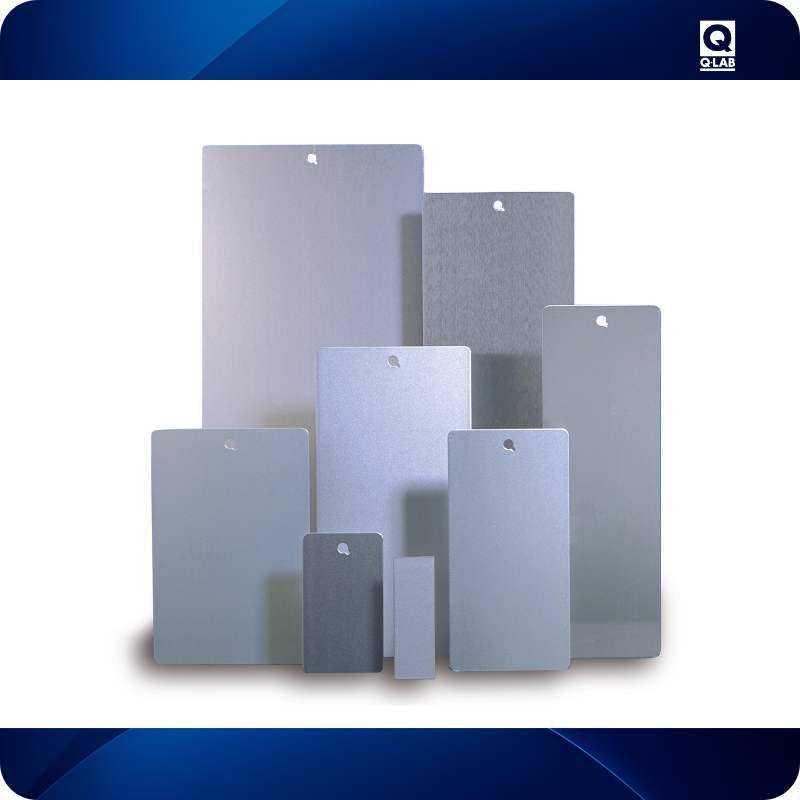

Internationally recognized, Q-Panel test panels offer a reproducible and uniform test surface to assess the visual (color, gloss, orange peel) and physical (abrasion, adhesion, impact, bending, thickness, hardness, etc.) properties, but also to carry out tests for corrosion, aging, chemical resistance, curing, drying, etc.

Contactez-nous

CONTACT

SOCIETE

Description

Internationally recognized, Q-Panel test panels offer a reproducible and uniform test surface to assess the visual (color, gloss, orange peel) and physical (abrasion, adhesion, impact, bending, thickness, hardness, etc.) properties, but also to carry out tests for corrosion, aging, chemical resistance, curing, drying, etc.

• Ready to use (unnecessary prior degreasing).

• Perforated and rounded edges.

• Steel panels packed in small quantities with a vapor phase rust inhibitor.

Steel panels
Model QD R S * D DT RS RI IF
Material / alloy cold rolled steel, SAE 1008/1010, low carbon
Thickness (mm) 0.51 0.81 0.81 0.25 0.25 1.6 0.81 0.81
Coating phosphate
Bonderite M-FE 1000
Finish smooth mate frosted smooth tinned frosted mate frosted
Roughness (µm) 0.63-1.65 0.51-1.14 0.51-1.14 0.63-1.65 0.51-1.14
Standards ISO 1514 type 3, ASTM A1008, D609 type 3, SAE QQ-S-698 ISO 1514 type 1, 3574 type CR1, ASTM A1008, D609 type 1, SAE QQ-S-698 ISO 1514, ASTM A1008, D609 type 2, SAE QQ-S-698 ISO 1514 type 3, ASTM A1008, SAE QQ-S-698 ISO 11949, ASTM A624, SAE QQ-S-698 ISO 1514, ASTM A1008, SAE QQ-S-698 ISO 1514 type 1, 3574 type CR1, ASTM A1008, D609 type 1 ISO 1514, ASTM A1008, D609 type 2
Hardness (Rockwell) B50-B65 B50-B65 B50-B65 B62-B71 B50-B65 B70-B85 B50-B70 B50-B70

Steel panels - Dimensions and references
Model QD R S * D DT RS RI IF
25 × 76 mm R13 **
25 × 102 mm RS14 **
51 × 89 mm QD2-3.5 R2-3.5
51 × 102 mm QD24
60 × 140 mm QD2.36-5.51
70 × 102 mm QD2.75-4
76 × 127 mm QD35 R35 S35 D35
76 × 152 mm QD36 R36 S36 D36 DT36 R36I S36I
76 × 229 mm QD39 R39 S39
102 × 102 mm R44T *** S44T ***
102 × 152 mm QD46 R46 S46 D46 DT46 R46I S46I
102 × 203 mm QD48 R48 S48
102 × 305 mm QD412 R412 S412 R412I S412I
152 × 305 mm QD612 R612 S612

Other dimensions on request

* Also available with surface finish on both sides of the panel ** Without hole *** For Taber® abrasion test

Aluminum panels
Model AT AL AR ARX * ASX * AD QA QAL
Material / alloy 3003 H14 3003 H14 2024 Q3 2024 Q3 6061 T6 2024T3 Alclad 5005 H24 5005 H24
ISO 209-1 alloy AlMn1Cu AlMn1Cu AlCu4Mg1 AlCu4Mg1 AlMg1SiCu AlCu4Mg1 AlMg1 (B) AlMg1 (B)
Thickness (mm) 0.64 0.64 1.6 0.81 0.81 1.6 0.81 0.81
Coating chromate Alclad chromate
Finish smooth smooth smooth smooth smooth smooth smooth smooth
Roughness (µm) 0.25-0.50 0.25-0.50 0.30-0.48 0.30-0.48 0.30-0.48 0.30-0.48 0.30-0.48 0.30-0.48
Standards ISO 209-1, 1514, ASTM B209, SAE QQ-A-250/2 ISO 209-1, 1514, 10546 Class 3, ASTM B209, B449 Class 2, SAE QQ-A-250/2 ISO 209-1, ASTM B209, SAE QQ-A-250/4 ISO 209-1, ASTM B209, ISO 209-1, ASTM B209, ISO 209-1, ASTM B209, SAE QQ-A-250/5 ISO 209-1, ASTM B209 ISO 209-1, 10546 Class 3, ASTM B209, B449 Class 2
MIL-DTL-5541, MIL-DTL-81706, MIL-A-8625 MIL-DTL-5541, MIL-DTL-81706, MIL-A-8625
Label Qualicoat Qualicoat

Aluminum Panels Dimensions and references
Model AT AL AR ARX * ASX * AD QA QAL
25 × 102 mm AR14 ** AD14 **
44 × 127 mm A1.75-5
51 × 89 mm A2-3.5 AL2-3.5
51 × 102 mm A24 QA24
60 × 140 mm QA2.36-5.51
70 × 102 mm A2.75-4
76 × 127 mm A35 AL35
76 × 152 mm A36 AL36 QA36 QAL36
76 × 229 mm A39 AL39
76 × 254 mm ARX310 ** ASX310 **
102 × 102 mm QA44
102 × 152 mm A46 AL46 QA46 QAL46
102 × 203 mm A48 AL48 QA48
102 × 305 mm A412 AL412 QA412 QAL412
152 × 305 mm A612 AL612 QA612

Other dimensions on request

* Also available with removable PE film on one side ** No hole

Automotive body simulation panels
Ref. ATS-101 ATS-201-X ATS-301-X
Type frame hood wing
Material aluminum 3003 H14 aluminum 3003 H14 aluminum 3003 H14
Dimensions (mm) 1651 × 1041 open 1372 × 1143 1156 × 724
1219 × 533 folded
Thickness (mm) 1080 open 1 1
1092 folded
Prepainted panels Stainless steel panels
Ref. WW-46 GW-46 WWS-46 SS-13 SS-36
(White) (Grey) (white with
black edging)
Material SAE 1008 steel SAE 1008 steel SAE 1008 steel 304-2B stainless steel
Dimensions (mm) 102 × 152 102 × 152 102 × 152 102 × 152 25 × 76 76 × 152
Thickness (mm) 0.18 0.18 0.18 0.89 0.89
Other panels on request *
any type of shape, dimensions (from 2.5 cm to 1.5 × 1.5 m), alloy and finish
(curved, sanded, welded, embossed, perforated, pre-painted gray or white panels, etc.)

* Minimum order required, contact us
