GP100 High Speed Rotogravure Applicator | Labomat

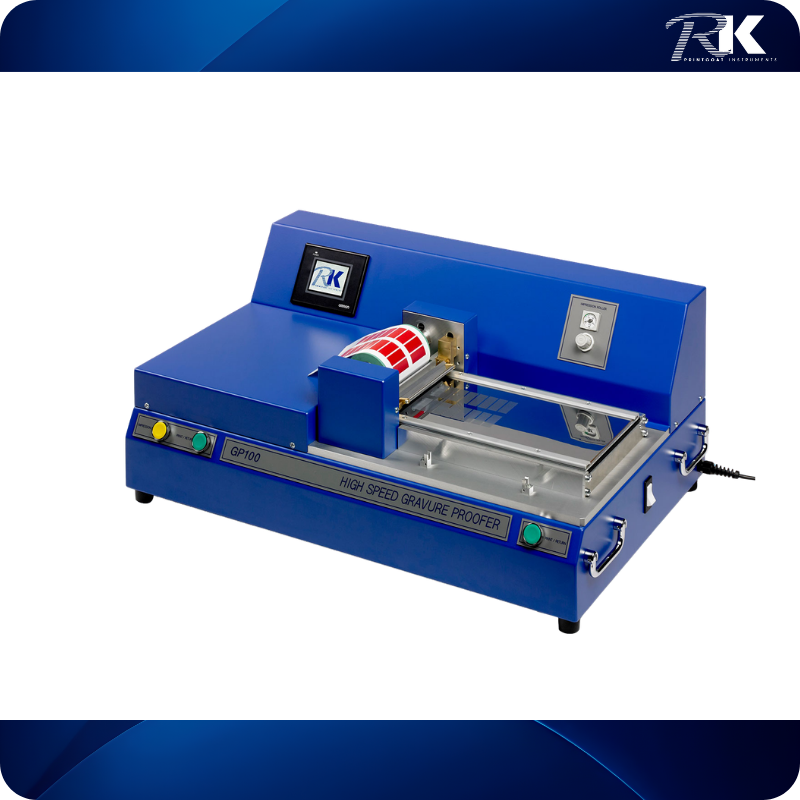

GP100 High Speed Rotogravure Applicator
GP100
Very high quality proofing using rotogravure inks. Proofs are produced instantly using the GP100. Ideal for R&D, colorimetric databases, quality control and making presentation samples.
Description
Very high quality proofing using rotogravure inks. Proofs are produced instantly using the GP100. Ideal for R&D, colorimetric databases, quality control and making presentation samples.
• Printing on any flexible substrate.
• Microprocessor controlled.
• Speed, doctor blade pressure and cylinder pressure controlled by pneumatic servomotors.
• Printing speed adjustable from 1 to 100 m / min.
• Electronically engraved plates.
• Easy squeegee disassembly for quick cleaning.
• Max engraved surface. : 160 x 95 mm.
|
7 plate models |
Nb lines / inch | Nb lines / cm | Density |
|
AT (ref. KPP.10) AT (ref. KPP.11) AT (ref. KPP.12) |
100 150 200 |
40 60 80 |
100% 100% 60% |
| B (ref. KPP.13) | 3 zones in 150 | 3 zones in 60 | 100-80-60% |
| VS (ref. KPP.14) |
1 half-page area and 4 zones in 150 |
1 half-page area and 4 zones in 60 |
90% |
|
D (ref. KPP.15) |
2 columns of 8 zones in 150 |
2 columns of 8 zones in 60 |
100-95-90-85- 80-75-70-60% |
| D (ref. KPP.15a) |
2 columns of 8 zones in 300 |
2 columns of 8 zones in 118 |
100-95-90-85- 80-75-70-60% |
Demonstration video:
Product Details
GP100
