High Speed Flexiproof 100 / UV Applicators | Labomat

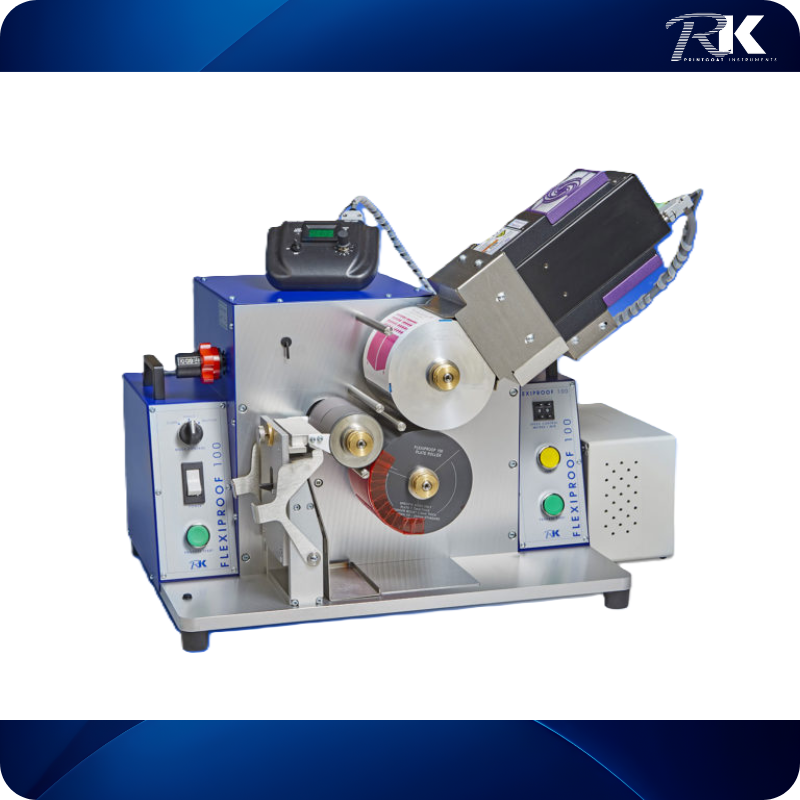

High Speed Flexiproof 100 / UV Applicators
Flexiproof 100/UV et 100/UV LED
These flexo proofing machines dedicated to all those involved in the manufacture and use of flexo inks are ideal for quality control, production of proofs under machine conditions, R&D and basic realization colorimetric.
Description
These flexo proofing machines dedicated to all those involved in the manufacture and use of flexo inks are ideal for quality control, production of proofs under machine conditions, R&D and basic realization colorimetric.
• Easy to use.
• Time saving: No more downtime for color matching.
• No more need to use a production line machine, the Flexiproof 100 / UV being a small flexo press.
• Reduces material costs and waste, minimizes customer returns.
• Performs rapid reception tests to ensure consistency of color, ink and substrate performance over time.
• Used to determine the properties and performance of the support / inks assemblies (scratch resistance, flexibility, durability, gloss, etc.).
• Prints on all commercial flexible media (paper, film, tapes, labels ...).
• Printing speed adjustable from 20 to 99 m / min.
• Printing area up to 240 x 75 mm (Flexiproof 100).
• Printing area up to 90 x 80 mm (Flexiproof 100 UV).
• Support size: 297 x 105 mm (= 1/2 A4) (Flexiproof 100).
• Support size: 125 x 105 mm (Flexiproof 100 UV).
• Complies with ISO 2834-2.
• As standard, the cliché is 1.14 mm + 0.5 mm.
• Cliché / engraved cylinder and cliché / support cylinder pressure adjustment in steps of 4 µm.
• Exist in 3 models:
- Flexiproof 100, without UV lamp.
- Flexiproof 100 UV, with UV lamp 200W / cm peaking between 310 and 370 nm.
- Flexiproof 100 UV LED, with 16W / cm² UV LED lamp at 395 nm or 385 nm or 405 nm.
| 4 standard ceramic twin-band cylinders: | ||||
| Nb cells per row / cm | 400 | 320 | 200 | 160 | 120 | 100 | 80 | 55 |
| Volume in cm³ | in m² | 3 | 4 | 5 | 6 | 7 | 8 | 13 | 18 |
| Nb cells per row / inch | 1000 | 800 | 500 | 400 | 300 | 250 | 200 | 140 |
Other 3-band ceramic cylinders on request.
Video presentation :
Product Details
Flexiproof 100/UV et 100/UV LED
