K303 Multicoater Automatic Ink Applicator | Labomat

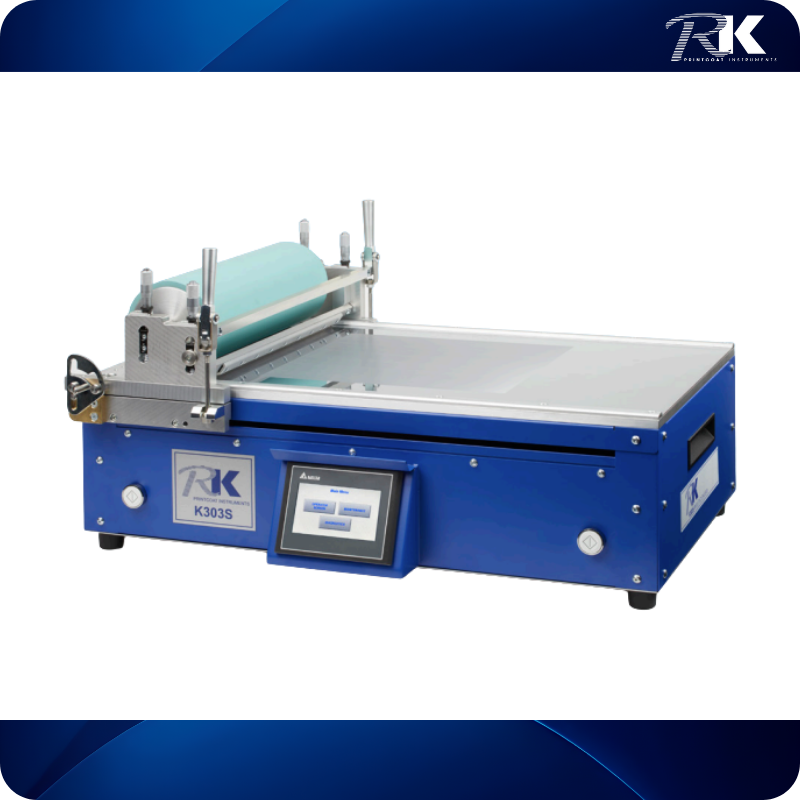

K303 Multicoater Automatic Ink Applicator
K303S Multicoater
This instrument makes it possible to make high quality proofs using flexo or rotogravure inks. The different heads are fully and easily interchangeable, providing rotogravure and flexo.
Description
This instrument makes it possible to make high quality proofs using flexo or rotogravure inks. The different heads are fully and easily interchangeable, providing rotogravure and flexo.
• Easy to clean, elements resistant to solvents.
• Simultaneous printing of two or more inks on any flexible substrate.
• Printing speed adjustable from 1 to 39 m / min.
• 2 print heads available: gravure / offset head (gravure printing process), and flexo head (flexographic process).
• Maximum engraved surface (engraving): 275 x 285 mm.
• Maximum engraved surface (flexo): 265 x 250 mm.
• Electric motor.
• Wide choice of standard or custom printing plates electronically engraved for perfect reproduction.
| 4 models of standard printing plates: | Nb lines / inch | Nb lines / cm | Density |
| 303 / D8W engraving | 8 zones in 150 | 8 zones in 60 | 100 -> 60% |
| 303 / S3W engraving | 3 zones in 150 | 3 zones in 60 | 100-80-60% |
| 303/35 flexo | 1 zone in 150 | 1 zone in 60 | 100% |
| 303/25 flexo | 1 zone in 150 | 1 zone in 60 | 60% |
Optional: Bar coater head to apply with spiral bars.
