K Lox automatic applicator | Labomat

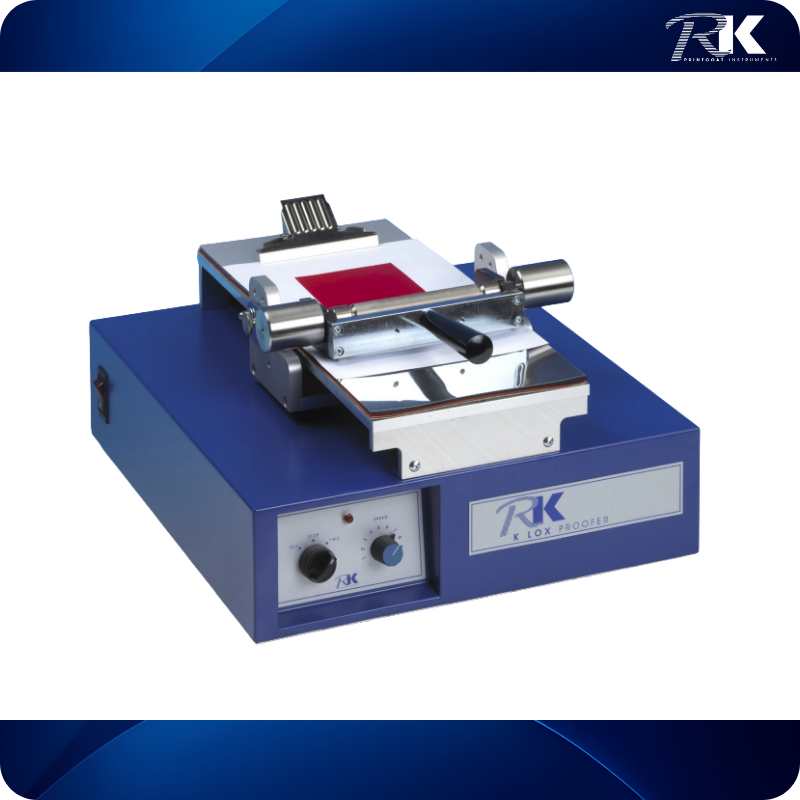

K Lox automatic applicator
K Lox
The K Lox Automatic Proofer provides reproducible speed and pressure for high-precision flexo proofing. This machine is recommended when repeatability is essential, for example for basic color creation or when a number of operators are involved.
Description
The K Lox Automatic Proofer provides reproducible speed and pressure for high-precision flexo proofing. This machine is recommended when repeatability is essential, for example for basic color creation or when a number of operators are involved.
• Instant flexo proof.
• Excellent repeatability.
• Easy to use, easy to clean.
• The speed is variable from 0 to 15 m / min.
• Electric and pneumatic versions available.
• The machine is delivered with 1 frame, 2 weights, 3 standard engraved steel cylinders, 2 standard rubber cylinders (EPDM, 50 Shore) and a storage / cleaning rack
(ref. KLOX 03S).
• The application width is 115 mm.
|
Cylinders engraved in standard steel Lignature / cylinder number |
Engraving | Cell volume | |
| nb cells / cm | nb cells / inch | cm³ / m² | |
| 400/5 | 160 | 400 | 4.3 |
| 200/12 | 80 | 200 | 10.2 |
| 180/14 | 70 | 180 | 16.6 |
| 140/10 | 55 | 140 | 20.2 |
| 100/18 | 40 | 100 | 39.1 |
Non-standard engraved steel cylinders on request.
Engravings (specified by the number of cells / cm and by the cell volume, ref. KLOX 20) and thicknesses (specified in wet film microns, ref. KLOX 21).
Product Details
K Lox
