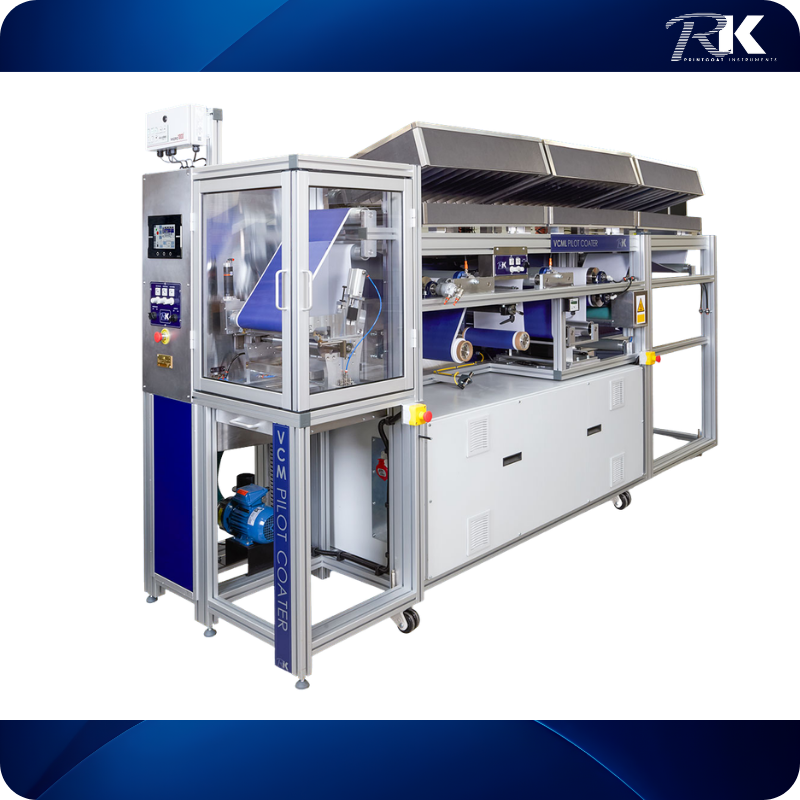

VCML / VCM pilot machines

The VCML is designed to print, deposit and laminate all types of flexible media (paper, plastic films, metallized films, etc.) on a reel-to-reel basis. Its many application processes make it an ideal pilot machine for product development, quality control and small-scale low-volume production.

Contactez-nous

CONTACT

SOCIETE

Description

The VCML is designed to print, deposit and laminate all types of flexible media (paper, plastic films, metallized films, etc.) on a reel-to-reel basis. Its many application processes make it an ideal pilot machine for product development, quality control and small-scale low-volume production.

• Possibility of applying different coatings (inks, paints, varnishes, glues, etc.) in solvent-based or in aqueous phase.

• Large format VCM model optimized for specific requirements. Its heavier frame allows application on wider and heavier substrates while retaining great flexibility to expand or modify the machine as developments or applications change.

Models VCML VCM
Characteristics

Belt width up to 300 mm

Control via touch screen with instructions
graphic management and operation

Servo motor with a speed range
from 1 to 70 m / min

Electric and pneumatic controls
integrated

Rigid aluminum frame
2.5 x 1 x 1.8 m (LxWxH)

Unwinding and rewinding on a system
cantilever.

Belt widths of 300, 400 and 500 mm

Rigid aluminum frame that can be fitted with:

- one or more application or coating heads

- unwinding and rewinding on a cantilever system

- several motors, inverter or servo motors on demand

- various film tension control options

- hot air dryers or others with side opening

- customized operating system on touch screen

- remote diagnosis and upgrade.

Demonstration video:

RK PRINT APPLICATEUR PILOTE VCML LAB PILOT COATER
