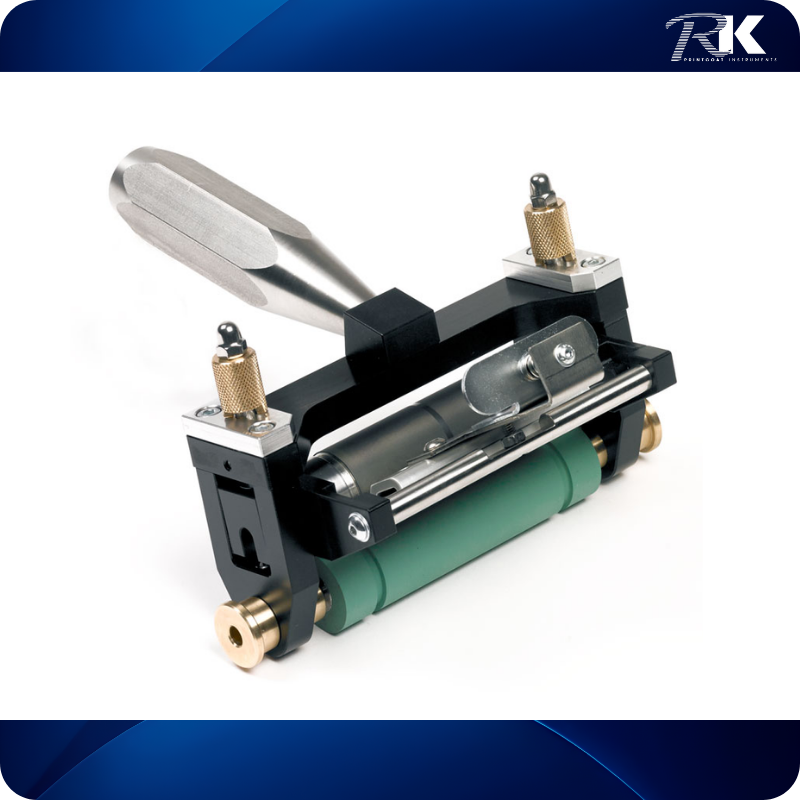

Esiproof manual scraped applicator

This portable unit makes it possible to produce full or half-tone flexo proofs quickly and economically. The film creation is quite unique by the use of a doctor blade on the anilox roller which enables quality proofing with high viscosity inks such as UV flexo inks.

Contactez-nous

CONTACT

SOCIETE

Description

This portable unit makes it possible to produce full or half-tone flexo proofs quickly and economically. The film creation is quite unique by the use of a doctor blade on the anilox roller which enables quality proofing with high viscosity inks such as UV flexo inks.

• Squeegee and cylinder adjustable in pressure by spring allowing the use of flexographic ink.

• The application width is 70 mm.

• Many anilox models in steel and ceramic standard or on request.

Standard mechanically engraved chromed steel anilox cylinders

Standard laser etched ceramic anilox cylinders

Ref. item
(lignature / cylinder number)

No. of cells

/ cm

No. of cells

/ inch

Depth

µm

Volume

cm³ / m²

Tool number

Ref. item

No. of cells

/ cm

No. of cells

/ inch

Volume

cm³ / m²

400/5 160 400 18 4.3 5 ESI.12A 475 1200 2
200/12 80 200 33 10.2 12 355 900 3
180/14 70 180 46 16.6 14 235 600 4
140/10 55 140 66 20.2 10 ESI.12B 195 500 5
100/18 40 100 130 39.1 18 155 400 6
140 360 7
ESI.12C 120 300 8
100 260 10
95 240 12
ESI.12D 80 200 14
70 180 17
65 165 20

Esiproof (model ESI.01.SPR1) delivered with 1 engraved chromed steel roller in 1 standard zone.

Esiproof (model ESI.01.SPR2) delivered with 1 ceramic roller engraved in 3 standard zones.
