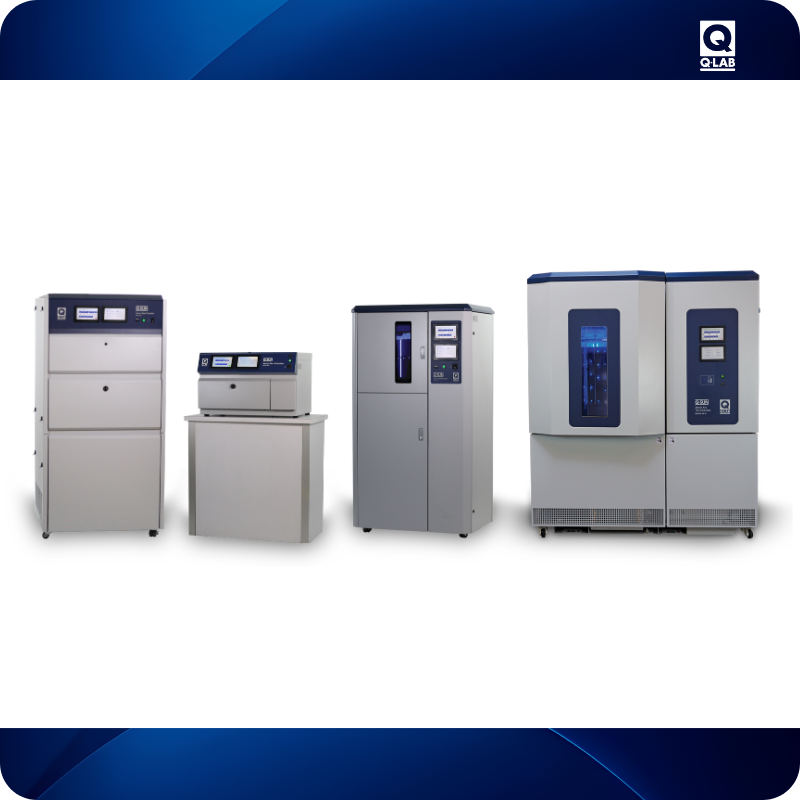

The sun, heat and humidity cause very expensive damage every year. The phenomena of discoloration, yellowing, loss of appearance properties but also cracking, cracks, occur both indoors and outdoors. Q-Sun Xenon aging chambers, manufactured by QLab corporation, simulate degradation caused by the entire solar spectrum, temperature and humidity.
The sun, heat and humidity cause very expensive damage every year. The phenomena of discoloration, yellowing, loss of appearance properties but also cracking, cracks, occur both indoors and outdoors. Q-Sun aging chambers simulate degradation caused by the entire solar spectrum, temperature and humidity.
• Q-Sun xenon arc chambers are configurable with several types of filters to simulate different light environments (exterior or interior sunlight, extended UV zone, etc.).
• Areas of application: paints, coatings, inks, varnishes, textiles, plastics, composites, automotive, aeronautics, construction, packaging, cosmetics, pharmaceuticals.
• Some standards: ISO 4892, ISO 105-B02, ISO 11341, ASTM G155, automotive standards (VW, BMW, Porsche,
Fiat ...), ICH Guideline, Colipa.
• French interface with storage of test programs.
• Alarm management mode.
• Ethernet output for data recovery (optional software).
|
Models |
Q-SUN Xe-1 |
Q-SUN Xe-2 |
Q-SUN Xe-3 |
||||||
|
-B -S |
-BC -SC |
-H -HS |
-H -HS |
-HC -HSC |
-HBS -HDS |
||||
|
Geometry |
Tray 25×46 cm |
Carousel 30×Ø25 cm |
Tray 45×72 cm |
||||||
|
Capacity |
1150 cm² |
1740 cm² |
3240 cm² |
||||||
|
Lamp |
Air-cooled xenon arc, 1800 W |
Air-cooled xenon arc, 1850 W |
Air cooled xenon arc, |
||||||
|
Number of lamps |
1 |
1 |
3 |
||||||
|
Regulation |
340 nm, 420 nm, TUV |
340 nm, 420 nm, TUV |
340 nm, 420 nm, TUV |
||||||
|
Regulation in temp. of surface |
BP (black panel) IBP (insulated black panel) |
BP (black panel) IBP (black panel isolated) |
BP (black panel) IBP (insulated black panel) |
||||||
|
Regulation in temp. air |
|||||||||
|
Relative humidity regulation |
|||||||||
|
Spray |
(-S) |
(-SC) |
(-HS) |
(-HS) |
(-HSC) |
double (-HDS) |
|||
|
Cold Group |
|||||||||
|
T ° black panel (° C) |
BP / IBP |
BP / IBP |
BP / IBP |
BP / IBP |
BP / IBP |
BP / IBP |
|||
|
light cycle with IR filter night cycle |
45-90 / 50-100 40-70 / 45-80 25-50 / 25-50 |
25-90 / 25-100 20-70 / 20-80 10-50 / 10-50 |
50-100 / 55-105 35-85 / 40-90 25-45 / 25-45 |
45-110 / 50-120 40-90 / 45-100 25-50 / 25-50 |
35-110 / 36-120 30-90 / 31-100 15-50 / 16-50 |
45-110 / 50-120 40-90 / 45-100 25-50 / 25-50 |
|||
|
T ° air (° C) |
|||||||||
|
light cycle with IR filter night cycle |
15-50 15-50 10-40 |
35-65 35-65 25-45 |
35-65 35-65 25-50 |
25-65 25-65 16-50 |
35-65 35-65 25-50 |
||||
|
Hmm. regulated (%HR) |
20-95 |
20-95 |
20-95 |
20-95 |
|||||
Other configurations available, consult us Temperature and regulated humidity values given as an indication (according to laboratory temperature / humidity and fixed irradiance)
See more details in the attached files.
Demonstration video
Other videos:
How to calibrate a Q-Sun Xenon aging chamber?
Q-Sun Xe- 1 speakers Q-Sun Xe-2 speakers (B02) Q-Sun Xe-3 speakers
Certain tests, particularly in the pharmaceutical and cosmetic industries, require the use of a cold group in order to work at low temperature so as not to thermally alter the sample.
The spraying system enables rapid thermal shocks to be produced on the surface of the samples (simulation of rain).
The repurification system makes it possible to reuse the initial demineralized water after filtration, thus reducing operating costs in spray mode.
