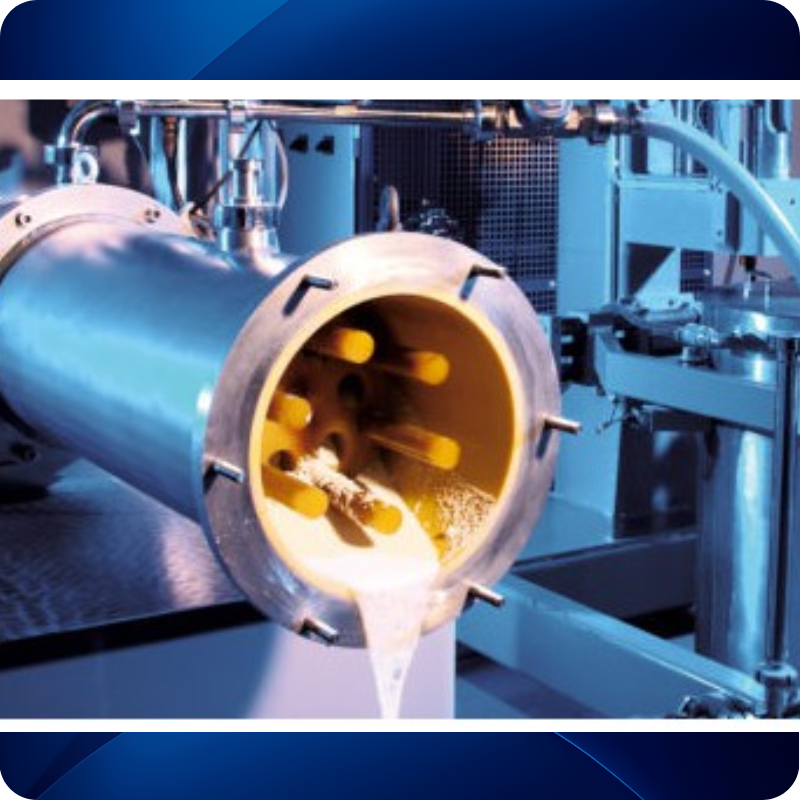

Since 1854 Sigmund Lindner has been producing technical glass beads for the grinding of pigments, minerals and raw materials as well as precision beads used in pharmaceutical, vial sealing, military or electronic applications .... Sigmund Lindner has established itself as one of the leaders in ceramic balls for applications requiring high performance in terms of fineness and grinding efficiency.
The type of grinding balls to be used depends on the product to be ground (initial and final particle size), the type and characteristics of the grinder, the desired grinding efficiency and the budget.
Find detailed information in the section:
• Smooth and homogeneous surface, low rate of air bubbles.
• High degree of roundness and elasticity.
• Narrow particle size distribution.
• Many sizes available.
|
Ball models |
S |
SL |
M |
|
Material |
Alkaline glass |
Weakly alkaline glass |
Alkaline or borosilicate glass |
|
Applications |
Grinding Surface treatment
|
Grinding PH stability during grinding |
Grinding
|
|
Diameter |
0 to 4.4 mm |
0.5 to 4.4 mm |
1.5 to 16 mm |
Complete range of Zirconium grinding balls composed of:
• Sintered Zirconium silicate balls (ZS type).
• Zirconium oxide balls stabilized with Cerium (ZC type).
• Zirconium oxide balls stabilized with Yttrium available in 3 qualities:
- Standard (ZYS type): balls available in many diameters.
- Extra (ZYE type): pre-polished balls offering the best performance-price ratio.
- Premium (ZYP type): very high performance balls for the most demanding applications.
|
Ball models |
ZS |
ZC |
ZYS |
ZYE |
ZYP |
|
Nature |
Sintered zirconium silicate |
Cerium stabilized zirconium oxide |
Yttrium stabilized zirconium oxide |
||
|
Diameter |
0.4 to 4 mm |
0.2 to 2.2 mm |
0.1 to 30 mm |
0.1 to 1.6 mm |
0.1 to 3.3 mm |
|
Specific weight |
4.1 |
6.2 |
6.0 |
6.05 |
6.06 |
|
Bulk density |
2.39 to 2.49 |
3.9 |
3.62 to 3.76 |
3.62 to 3.69 |
3.71 to 3.82 mm |
|
Microhardness |
1000 HV |
1100 HV |
1150 HV |
> 1400 HV |
1200 HV |
Video presentation :
Other video:
The 'Test Taber' provides reliable data within minutes. Used to assess a material's resistance to wear, a flat sample is mounted on a turntable that rotates on a vertical axis. As the platen rotates, contact of the sample against the sliding rotation of two grinding wheels causes wear while a vacuum system removes loose wear debris during testing. The...
Reference: Kit d'étalonnage éponges
Sponge calibration kit according to ASTM D7869 to quantify the amount of spray during the test.
Used to determine the viscosity in cSt according to the flow time obtained for the following cuts:
Reference: PosiTest PT
Determines the film hardness by pencil test (Wolff-Wilborn) in accordance with ISO 15184 and ASTM D3363.
Voltmeter offering a fast and accurate method of checking the calibration status of high voltage porosimeters models PHD / DP / PHD Pro 'and equivalent devices.
Standard blocks for checking the multi-range durometer.
Ideal ovens for rapid drying or for storing products in perfectly controlled temperature conditions thanks to the patented APT.line preheating chamber with electronic regulation.
Reference: KH300
Kesternich corrosion chambers KH300 - KH300TT Complies with standards : ASTM D2247, ISO 11503, NFT 30-077, NFT 30-055, ASTM G87, BS3900 / F9, ISO 6270-2 CH, EN ISO 6988, SFW 2,0, S, ISO EN 1096 B, DIN 50017 KK and KTW, ISO 3231, DIN 50018, VDA 621-421, ISO EN 1096 C
Measuring Paint Thickness on Plastic Bumpers/Fascias with Advanced Driver Assistance Systems (ADAS)
What is the difference between QFS-40 and UVB-313EL lamps?
Wide range of enclosures allowing continuous salt spray testing or cycle testing.
The new Helipath HPQA Ametek Brookfield support is an innovative, motorized, quick-action stand allowing: Advanced Helipath testing Quick adjustment of the viscometer position
Developed as a range of flexible volume corrosion chambers, this new CorroFlex range is available in a salt spray version and a cyclic version, in a wide variety of sizes.Equipped with front loading system for testing large / heavy items.
Portable porosimeters designed to control the defects or porosity of insulating coatings such as paint, PVC, rubber, enamel on conductive supports (tanks, reservoirs, valves, pipes, concrete, etc.).
Reference: Esiproof
This portable unit makes it possible to produce full or half-tone flexo proofs quickly and economically. The film creation is quite unique by the use of a doctor blade on the anilox roller which enables quality proofing with high viscosity inks such as UV flexo inks.
Since 1854 Sigmund Lindner has been producing technical glass beads for the grinding of pigments, minerals and raw materials as well as precision beads used in pharmaceutical, vial sealing, military or electronic applications .... Sigmund Lindner has established itself as one of the leaders in ceramic balls for applications requiring high performance in terms of fineness and grinding efficiency.
