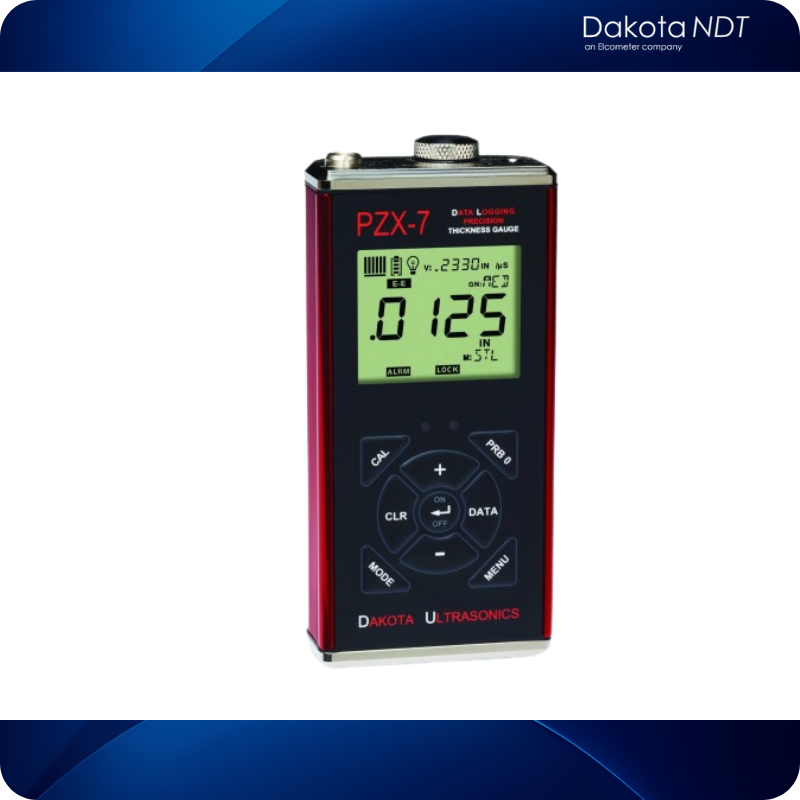

The use of a single element transducer equipped with a delay line allows the measurement of small thicknesses of materials. Its 4 measurement modes make it a versatile device.

• 4 measurement modes: Pulse-Echo (PE), Echo-Echo (EE) (thickness without coating), Interface-Echo (IE) (total thickness
coating included) and PLAS (thin plastics).

• Scan function allowing high speed scanning over a large area.

• Differential mode: direct display of the deviation from the fixed thickness.

• Internal memory of 10,000 measurements and data processing on a computer (model PZX-7DL).

• Different probes (5 to 20 MHz frequency; 3/16 "to 1/2" diameter) and delay lines available.

• Supplied as standard with the 15 MHz 1/4 "probe and 2 acrylic delay lines 3/8" L and 1/2 "L.

• Measuring range depends on the type of material, the frequency and the diameter of the probe.
