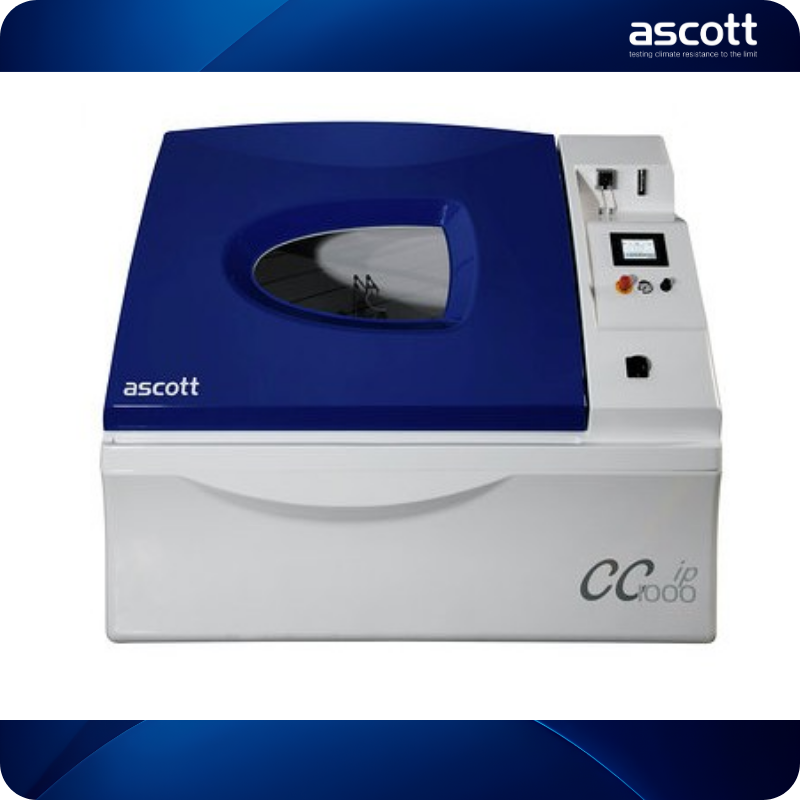

With great flexibility, the CC-iP enclosures can respond to a multitude of cyclical tests.
With great flexibility, the CC-iP enclosures can respond to a multitude of cyclical tests.
• 4 distinct climatic conditions possible in the desired order, with automatic repetition: salt spray,
saturated humidity, air drying and regulated humidity.
• Other characteristics identical to the S -iP models (see: https://labomat.eu/gb/multifunctional-saturated-humidity-corrosion-chambers/130-ascott-s-ip-corrosion-chambers.html)
• Wide range of optional accessories to generate other climatic conditions.
| Models | CC450iP | CC1000iP | CC1300iP | CC2000iP | CC2600iP |
| Speaker volume (L) | 450 | 1000 | 1300 | 2000 | 2600 |
| Loading threshold (mm) | 800 | 800 | 800 | 800 | 800 |
| Internal dimensions W x D x H (mm) | 1010 x 640 x 1140 | 1300 x 980 x 1320 | 1300 x 980 x 1528 | 2160 x 980 x 1320 | 2160 x 980 x 1528 |
| External dimensions W x D x H (mm) | 1660 x 840 x 1510 | 2520 x 1145 x 1720 | 2025 x 1156 x 1906 | 2885 x 1145 x 1720 | 2885 x 1156 x 1906 |
| Saline tank volume (L) | 73 | 90 | 90 | 90 | 90 |
| Notched specimen holder (optional) | 6 bars with 28 notches | 8 bars with 46 notches | 8 bars with 46 notches | 16 bars with 46 notches | 16 bars with 46 notches |
|
Options |
|||
|
Functions additional |
Cold unit or dryer |
Other sprays |
Rinsing the walls (ACC42) Alternate immersion (ACC34) |
|
Measurement and acquisition |
Data logger SIM card connectivity (ACC114) Acquisition software (ACC120) |
Saline flow sensor (ACC102) |
Refractometer PH meter Thermo-hygrometer (ACC28) Nozzle anemometer (ACC106) |
|
Sample supports |
Variable Angle Notch Bars (ACC14) or fixed (ACC16) |
Suspension bars (ACC17) Point bars (ACC18) |
False floor (ACC19) Zero level platform (ACC15) |
|
Accessories |
Additional 80L, 115L or 160L salt solution tank (ACC59) Saline stirrer Salt |
Air compressor External port for pressure gauge (ACC94) Evacuation pump (ACC20) Saline vapor rinse (ACC92) |
Hood with vertical opening (ACC110) Insulating cover for porthole (ACC82) Internal lighting (ACC26) Wall passage (ACC10) |
|
Consumables |
Consumables kit (ACC12) |
||
