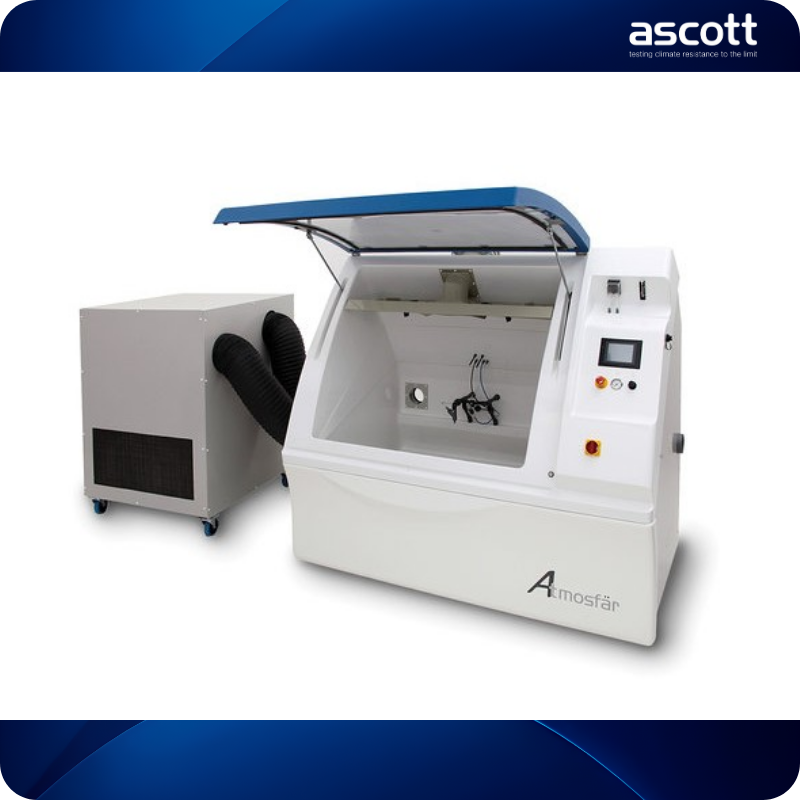

An advanced version of the CC -iP enclosures, Astmosfär enclosures have been designed to meet the even more demanding corrosion tests required in the automotive industry in particular.
An advanced version of the CC -iP enclosures, Astmosfär enclosures have been designed to meet the even more demanding corrosion tests required in the automotive industry in particular.
• Complies with Ford CETP 00.00-L-467, Volvo VCS 1027,149 (ACT-1), Volvo VCS 1027,1449 (ACT-2), Volvo STD 423-0014, Volvo STD 1027,1375 and ISO 16701.
• Magnetically coupled oscillating vertical salt spray bar.
• Separate air conditioning unit: model AT / 1 down to -20 ° C or AT / 2 down to -40 ° C.
• Psychrometric humidity control module.
|
Models |
AT1300iP / Lite |
AT1300iP / 1 |
AT1300iP / 2 |
AT2600iP / Lite |
AT2600iP / 1 |
AT2600iP / 2 |
|
Speaker volume (L) |
1300 |
1300 |
1300 |
2600 |
2600 |
2600 |
|
Loading threshold (mm) |
800 |
800 |
800 |
800 |
800 |
800 |
|
Internal dims L×P×H (mm) |
1300x980x1500 |
1300×980×1500 |
1300×980×1500 |
2160x980x1500 |
2160×980×1500 |
2160×980×1500 |
|
External dims L×P×H (mm) |
2025x1316x1965 |
2025×1316×1965 |
2025×1316×1965 |
2885x1316x1965 |
2885×1316×1965 |
2885×1316×1965 |
|
Cooling unit dim. |
1510x1550x1055 |
1510×1550×1055 |
1510×1550×1055 |
1510x1550x1055 |
1510×1550×1055 |
1510×1550×1055 |
|
Saline tank volume (L) |
2 tanks: 90 (for conventional salt spray nozzle) |
|||||
|
Notched specimen holder (optional) |
8 bars with 24 notches |
8 bars |
8 bars |
16 bars with 24 notches |
16 bars |
16 bars |
|
Temperature range in salt spray or oscillating mode |
Tambient at 50 ° C |
|||||
|
in saturated humidity mode |
Tambient at 70 ° C |
|||||
|
in drying mode |
Tambient at 70 ° C |
|||||
|
in controlled humidity mode |
See additional graphic |
|||||
Demonstration video:
Reference: Déminéralisateurs
Simple and economical solution to produce high quality type 2 purified water (NO RELEASE / NO STORAGE) with a high flow rate. Simple and economical solution to produce high quality purified water for aging chambers, salt spray chambers, cyclic corrosion chambers, climatic chambers and others.
Designed to perform scratches before a corrosion test as described in the Qualicoat specifications for the Machu, salt spray and CASS (cupro-acetic salt spray) test.
Preventive, curative maintenance, calibration of Ascott salt spray chambers and cyclic corrosion chambers
Designed to perform scratches before a corrosion test as described in the Qualicoat specifications for the Machu, salt spray and CASS (cupro-acetic salt spray) test.
Front loading test chambers Ultra Compact 300 litres.
Reference: Q-FOG CRH
Recognized worldwide for their performance, extreme reliability and unparalleled ease of use, Q-FOG salt spray enclosures manufactured by Q-Lab Corporation have been the quality benchmark on the market for over 20 years.
Reference: Ascott CCT
With great flexibility, the CC-iP enclosures can respond to a multitude of cyclical tests.
An advanced version of the CC -iP enclosures, Astmosfär enclosures have been designed to meet the even more demanding corrosion tests required in the automotive industry in particular.
