Cross cut CC1000 / -2000 / -3000

CC1000 /-2000 /-3000

Simple method of evaluating the adhesion of a paint or a coating to its support by making 2 series of perpendicular incisions and observing the number of squares detached after brushing and application of a standardized adhesive.

Contactez-nous

CONTACT

SOCIETE

Description

Simple method of evaluating the adhesion of a paint or a coating to its support by making 2 series of perpendicular incisions and observing the number of squares detached after brushing and application of a standardized tape.

• Supplied in a case with handle, cutting tool, tape, illuminating magnifying glass, brush, and certificate of conformity.

• Complies with ISO 2409, DIN 53151 and ASTM D3359 standards.

• Optional: tape 3,5 N/cm width 25 mm (99C8705000), tape 3,5 N/cm width 50 mm (99C8705500), tape 7,5 N/cm width 25 mm (99C2525X24) and tape 8 N/25 mm width 25,4 mm
   (16th edition Qualicoat) (45CMAS2133).

Standard

Coating thickness (µm)

Hardness of
support

Spacing
and number of teeth
incision

Knurled models

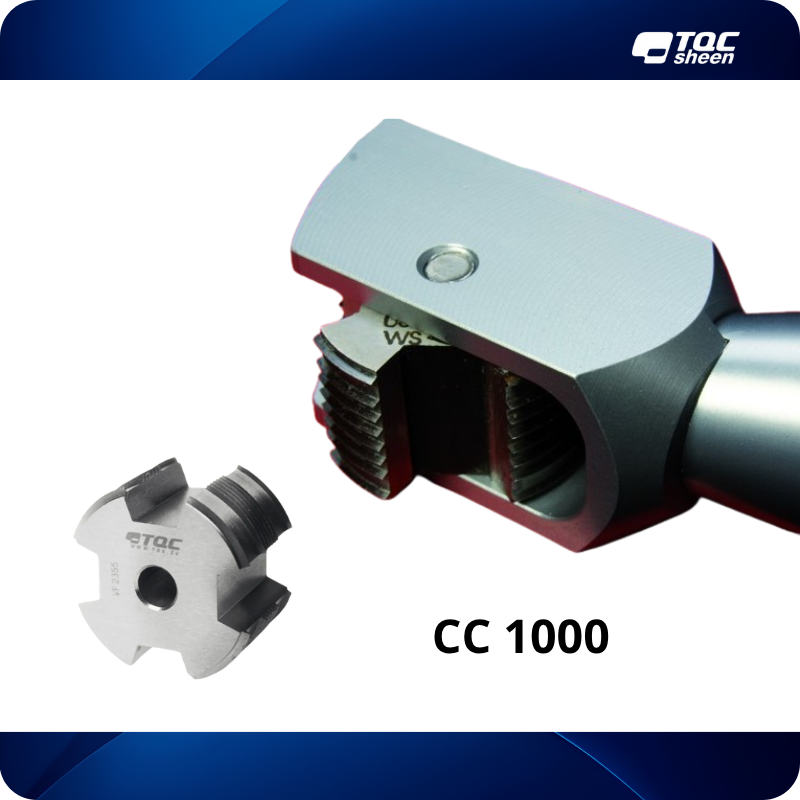

CC1000

Interchangeable blade models

CC2000

Adjustable depth models

CC3000

ISO 2409

≤ 60

Hard

1 mm, 6 teeth

VF1856 + VF2355
VF1848 + VF2355

SP1666 + SP1702
SP1665 + SP1702

SP1695 + SP1702
SP1714 + SP1702

ISO 2409

≤ 60

Soft

2 mm, 6 teeth

VF1856 + VF2357
VF1848 + VF2357

SP1666 + SP1703
SP1665 + SP1703

SP1695 + SP1703
SP1714 + SP1703

ISO 2409

61-120

Soft / hard

2 mm, 6 teeth

VF1856 + VF2357
VF1848 + VF2357

SP1666 + SP1703
SP1665 + SP1703

SP1695 + SP1703
SP1714 + SP1703

ISO 2409

121-250

Soft / hard

3 mm, 6 teeth

VF1856 + VF2358
VF1848 + VF2358

SP1666 + SP1704
SP1665 + SP1704

SP1695 + SP1704
SP1714 + SP1704

ASTM D3359

≤ 50

Soft / hard

1 mm, 11 teeth

VF1856 + VF2359
VF1848 + VF2359

SP1666 + SP1705
SP1665 + SP1705

SP1695 + SP1705
SP1714 + SP1705

ASTM D3359

50-125

Soft / hard

1.5 mm, 11 teeth

VF1856 + VF1861
VF1848 + VF1861

SP1666 + SP1706
SP1665 + SP1706

SP1695 + SP1706
SP1714 + SP1706

Video presentation :

TQC PEIGNES DE QUADRILLAGE

Product Details
CC1000 /-2000 /-3000
