PosiTest AT pull-off adhesion testers

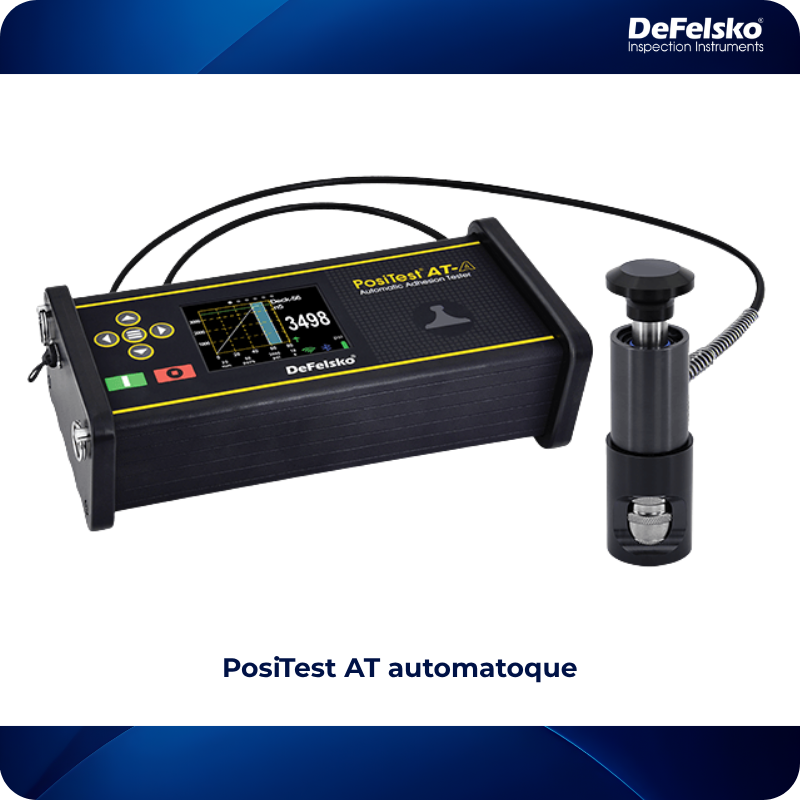

PosiTest AT
Measure the force required to pull out by hydraulic traction a known diameter of coating on metal, wood, concrete and other rigid substrates.
Description
Measure the force required to pull out by hydraulic traction a known diameter of coating on metal, wood, concrete and other rigid substrates.
- Larger 2.8" (7,1 cm) impact resistant color touchscreen with redesigned keypad for quick menu navigation with or without gloves.
- Automatic alignment thanks to a patented ball joint system.
|
Models |
ATM20 |
ATM50 |
ATA20 |
ATA50 |
ATM50T |
ATM50C | ATA50T | ATA50C |
|
Measuring range |
0.7-20 MPa 100-3000 psi |
0.4-3.3 MPa 50-480 psi |
0.7-24 MPa 100-3500 psi 220-7550 N |
0.1-3.8 MPa 16-560 psi 220-7550 N |
0.4-2.585 MPa 50-375 psi |
0.4-3.3 MPa 50-480 psi |
0.1-3 MPa 13-440 psi 220-7550 N |
0.1-3.8 MPa 16-560 psi 220-7550 N |
|
Application |
Coating on metal |
Coating on wood, concrete, plastic |
Coating on metal |
Coating on wood, concrete, plastic |
Coating on tiles |
Coating on concrete | Coating on tiles | Coating on concrete |
|
Hydraulic pump |
Manual: breakout force indicator for manual adjustment |
Manual: breakout force indicator for manual adjustment |
Automatic: force |
Automatic: force |
Manual: breakout force indicator for manual adjustment |
Manual: breakout force indicator for manual adjustment |
Automatic: force |
Automatic: force |
|
Internal memory |
200 tests: maximum breakout rate and force, test duration and stud diameter |
200 tests: maximum breakout rate and force, test duration and stud diameter |
100,000 tests in 1000 batches: maximum tearout rate and force, test duration, stud diameter, good / bad mode, nature of |
100,000 tests in 1000 batches: maximum tearout rate and force, test duration, stud diameter, good / bad mode, nature of |
200 tests: maximum breakout rate and force, test duration and stud diameter |
200 tests: maximum breakout rate and force, test duration and stud diameter |
100,000 tests in 1000 batches: maximum tearout rate and force, test duration, stud diameter, good / bad mode, nature of |
100,000 tests in 1000 batches: maximum tearout rate and force, test duration, stud diameter, good / bad mode, nature of |
|
Standards |
ASTM D4541 / D7234, ISO 4624 / 16276-1, NF / EN 24624 |
ASTM D4541 / D7234, ISO 4624 / 16276-1, NF / EN 24624 |
ASTM D4541 / D7234, ISO 4624 / 16276-1, NF / EN 24624 |
ASTM D4541 / D7234, ISO 4624 / 16276-1, NF / EN 24624 |
EN 12004-2 |
ASTM C1583, EN 1542 |
EN 12004-2 |
ASTM C1583, EN 1542 |
- Supplied with calibration certificate connected to NIST.
- 2 years warranty.
- Optional: 20, 50, 14 and 10 mm studs, gluing kit, adaptation kit for 20 mm or 50 mm studs, cutting tool
Magnetic tripod for 20 mm (LD9250), 50, 14 and 10 mm posts, robust Pelican-type carrying case (available for
PosiTest AT-A).
Demonstration video:
Positest AT alignment system
