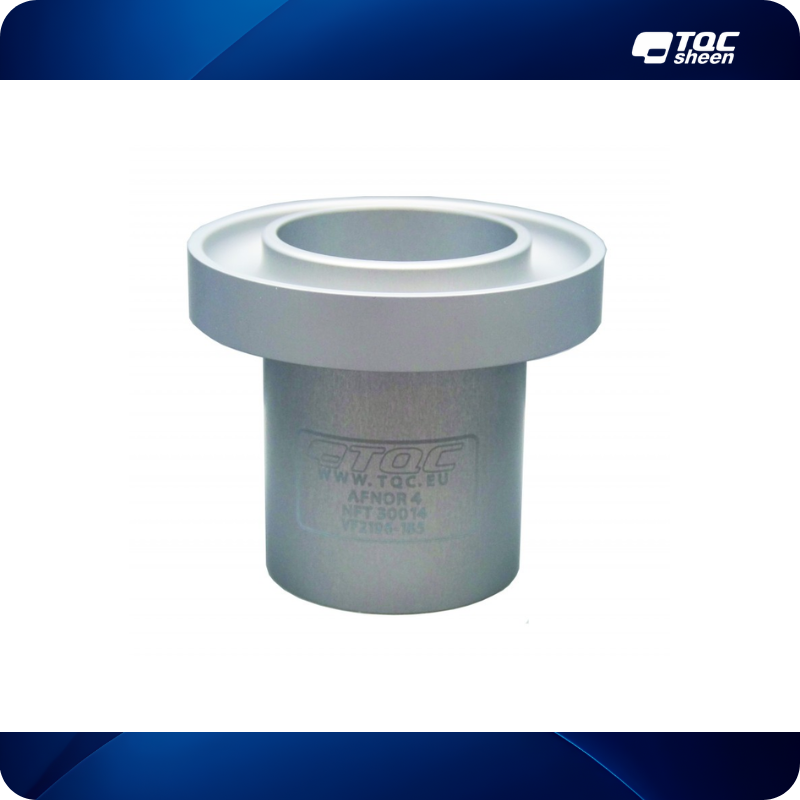

Viscosity cups

Reference Coupes de viscosité

Simple method for determining the kinematic viscosity of paints, oils, resins, emulsions, inks and other products by measuring the flow time of the fluid through a calibrated orifice.

Contactez-nous

CONTACT

Civilité

Nom

Prénom

Téléphone

SOCIETE

Nom de la société

Adresse

Code postal

Ville

Pays

Votre message

Description

Simple method for determining the kinematic viscosity of paints, oils, resins, emulsions, inks and other products by measuring the flow time of the fluid through a calibrated orifice.

• Anodized aluminum (except disposable plastic working cup).

• Delivered with a calibration certificate of the batch concerned (except working cup) (optional individual calibration certificate).

• Optional control standard oils (depending on the type of cup and the diameter of its orifice).

ISO	AFNOR	DIN / FRIKMAR	DIN	FORD	ZAHN	LORY	Working cup
3 - 4* - 5 - 6* - 8 mm	2.5 - 4 - 6 - 8 mm	2* - 3 - 4* - 5* - 6* - 8 mm	1 to 8 mm interchangeable	no. 1 - 2 - 3 - 4 - 5	no. 1 - 2 - 3 - 4 - 5		4 mm
With and without handle	With and without handle	With and without handle	With and without handle	With and without handle	With handle	With handle	With handle
ISO 2431, NF T 30070, DIN 53224, BS 3900	NF T 30014	DIN 53211 (4 mm)	DIN 53211 (4 mm)	ASTM D1200	ASTM D4212, ASTM D1084		NF/ISO/DIN
