868s Thermal imager
868s
For non-contact detection and analysis of leaks, moisture damage and other structural faults, as well as building thermal anomalies, thermal bridges and monitoring the efficiency of heating systems.
Description

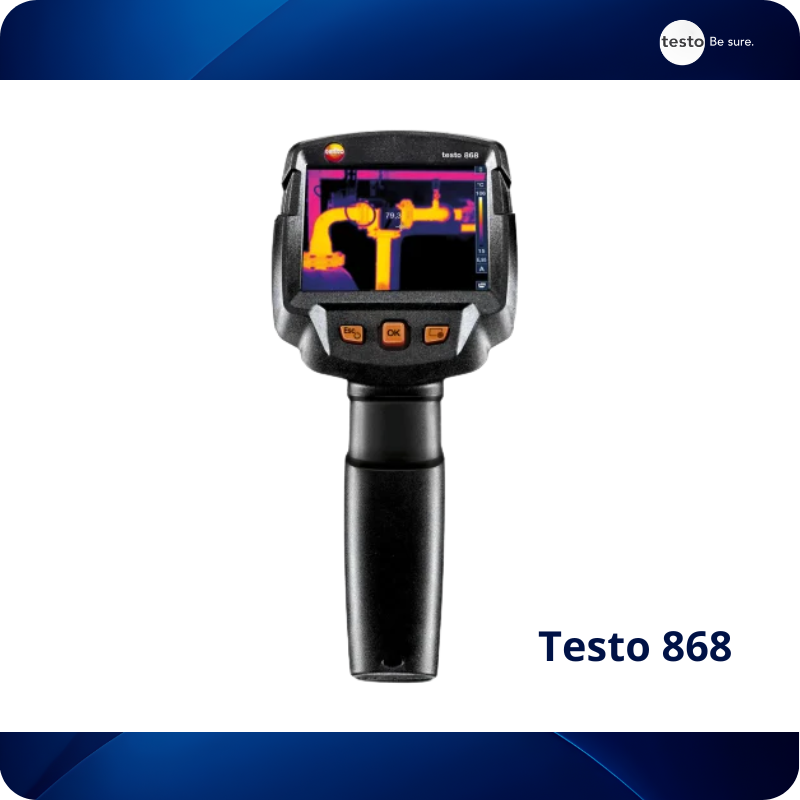

Testo 868s | Professional, connected thermal imaging camera for thermal inspections and energy audits
Description
The Testo 868s thermal imaging camera combines performance, ease of use, and advanced connectivity. It is particularly well-suited for professionals in maintenance, construction, industry, and technical inspection who need to quickly identify energy losses, insulation defects, electrical or mechanical overheating, and equipment malfunctions.
Equipped with a high-quality infrared sensor offering a resolution of 160 × 120 pixels—enhanced to 320 × 240 pixels thanks to exclusive Super Resolution technology—it provides detailed thermal images that enable precise analysis of temperature differences.
The intelligent testo ScaleAssist function automatically adjusts the thermal scale to ensure comparable and reliable results, particularly during building inspections. Automatic detection of hot and cold spots allows for the instant identification of critical anomalies.
Thanks to its built-in Wi-Fi connectivity, the testo Thermography App turns your smartphone or tablet into a second screen and remote control, while allowing you to create and send professional reports immediately on-site.
Technical Specifications
|
Specification |
Value |
|
Infrared Resolution |
160 × 120 pixels |
|
SuperResolution |
320 × 240 pixels |
|
Thermal Sensitivity (NETD) |
< 0.08 °C (80 mK) |
|
Field of View |
31° × 23° |
|
Minimum Focusing Distance |
< 0.5 m |
|
Refresh Rate |
9 Hz |
|
Spectral Range |
7.5 to 14 µm |
|
Focus |
Fixed Focus |
|
Measurement Range 1 |
-30 to +100 °C |
|
Measurement Range 2 |
0 to +650 °C |
|
Accuracy |
±2 °C or ±2% of measured value |
|
Digital Camera |
5 MP |
|
Display |
3.5" TFT Display (320 × 240 px) |
|
Connectivity |
WLAN (Wi-Fi), USB 2.0 Micro-B |
|
Image Formats |
JPG, BMT |
|
Internal Memory |
2.8 GB |
|
Battery Type |
Field-replaceable Lithium-Ion Battery |
|
Battery Life |
Up to 4 hours |
|
Protection Rating |
IP54 |
|
Operating Temperature |
-15 to +50 °C |
|
Storage Temperature |
-30 to +60 °C |
|
Dimensions |
219 × 96 × 95 mm |
|
Weight |
510 g |
Product Details
868s
