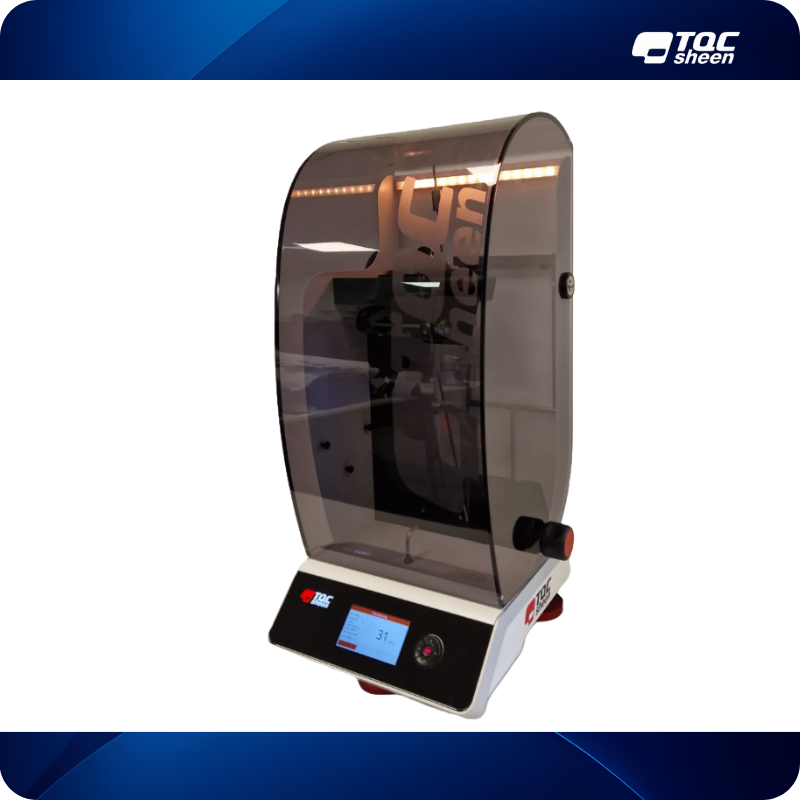

Persoz and / or König automatic hardness pendulums

Used to assess the hardness of a coating by measuring the duration of the damping of a pendulum oscillating on its surface.

Persoz and / or König hardness measurement

Contactez-nous

CONTACT

SOCIETE

Description

Used to assess the hardness of a coating by measuring the duration of the damping of a pendulum oscillating on its surface.

• Automatic functioning of the pendulum by simply pressing the multilingual control wheel: positioning by means of a stepping motor, launching by electromagnetic system, repositioning at the end of the test.

• Digital counter of the number of oscillations and the time (seconds).

• Supplied with a standard glass plate, a transparent cover on the jacks preventing any disturbance by air movement and a certificate of conformity.

• Complies with ISO 1522, NFT 30 016, ASTM 4366, DIN 53157 and BS 3900 E5 standards.

Models

Persoz

Konig

Characteristics

Stainless steel pendulum 500 g
resting on 2 tungsten carbide balls Ø 8 mm 50 mm apart

Stainless steel pendulum with adjustable weight 200 g resting on 2 tungsten carbide balls Ø 5 mm 30 mm apart

Oscillation period / Angles

1 s / from 12 ° to 4 °

1.4 s / from 6 ° to 3 °

Amortization time (glass plate)

minimum 430 ± 15 s

250 ± 10 s

Max sample size

105×200×11 mm

105×200×8.3 mm

Video presentation :

TQC DURETE PENDULE PERSOZ KOENIG
