Testex Press-O-Film PosiTector RTR-3D tape reader | Labomat

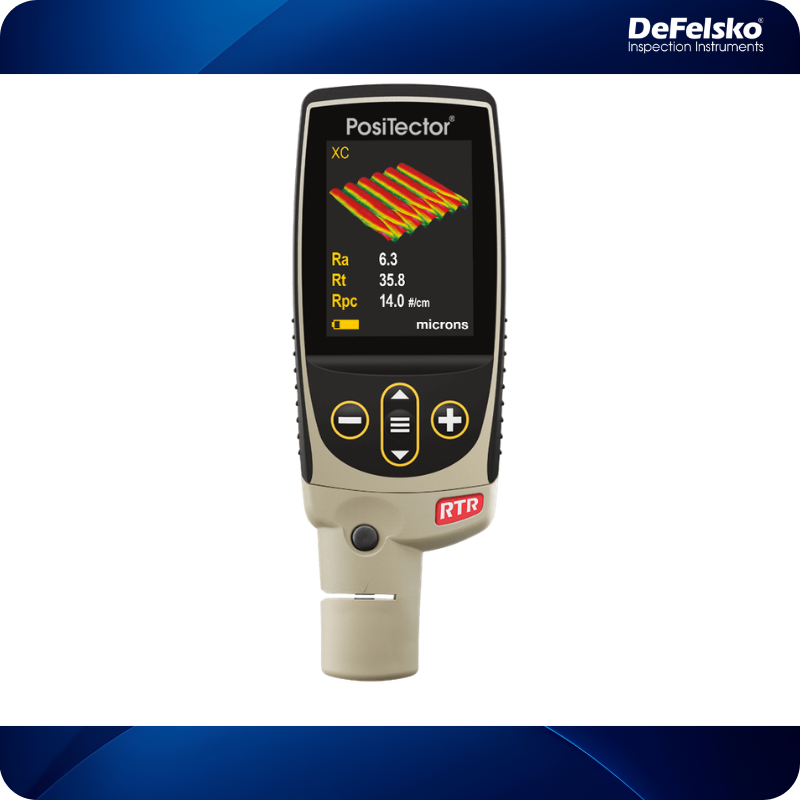

Testex Press-O-Film PosiTector RTR-3D tape reader

RTR-3D

Allows measurement and recording of the profile parameters of a surface using Testex Press-O-Film tape.

Contactez-nous

CONTACT

SOCIETE

Description

Allows measurement and recording of the profile parameters of a surface using Testex Press-O-Film tape.

- Larger 2.8" (7,1 cm) impact resistant color touchscreen with redesigned keypad for quick menu navigation with or without gloves.

- 3D images and 2D / 3D settings available on screen. Ra, Rq, Rz, Rp, Rv, Rt, Rpc (2D) and Sa, Sq, Sz, Sp, Sv and Spd (3D).

- Complies with ISO 8503-5, ASTM D4417C, NACE RP0287, SSPC-PA17, SSPC SP5, SP6, SP10, SP11-87T and others.

- Scalable device: transforms into a coating or wall thickness meter, thermo-hygrometer, profile depth gauge according to the type of probe connected or body

- PosiTector RTR-3D probe to be combined with the PosiTector Standard body (serial number> 780321+) or with the PosiTector Advanced body (serial number> 784000+).

- Supplied with a calibration certificate.

- 2 years warranty.

- Optional: Testex Press-O-Film tapes, certified or non-certified shims, stainless steel stylus.

Product Details
RTR-3D
You might also like
8 other products in the same category:
Testex Press-O-Film Tape Quick view

Reference: TESTEX

Testex Press-O-Film Tape

Testex Press-O-Film tape reproduces the profile of a surface by molding. The impression made on the tape is then measured with a thickness comparator (measurement of the maximum peak-valley height) or with the PosiTector RTR device (automatic linearization).
