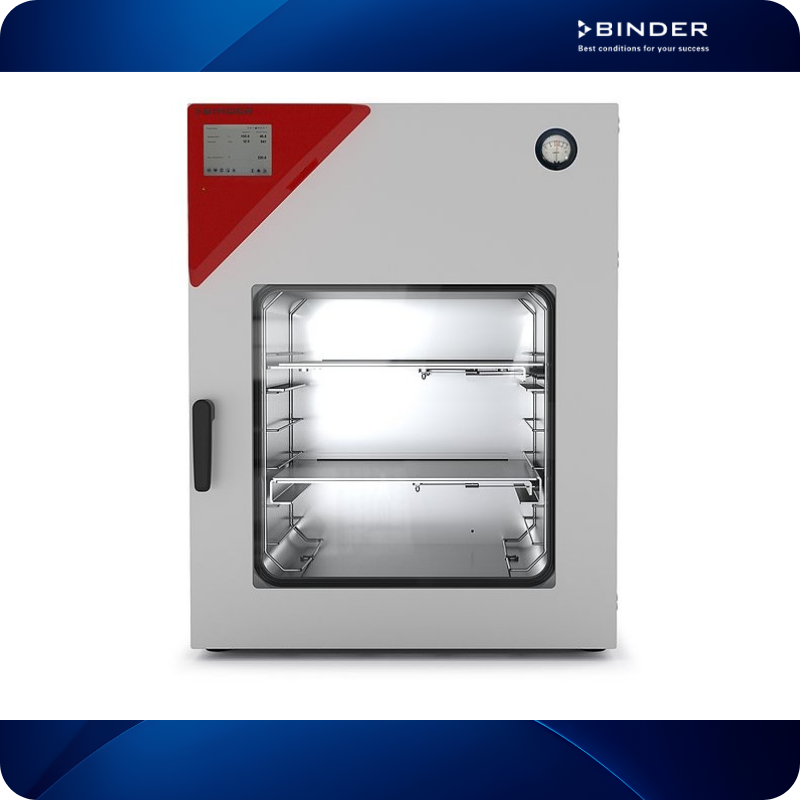

VD / VDL Binder vacuum drying chambers

The two BINDER vacuum drying oven models VD and VDL allow gentle and efficient drying without danger to the materials to be dried.

Thanks to their proven technical characteristics, they respond remarkably well to the high requirements of industrial and scientific laboratories. Depending on their particular use, samples, models, etc. can be dried with flammable and non-flammable solvents. To achieve this, Binder vacuum drying ovens feature a unique safety concept that sets new standards of quality and safety while still ensuring the usual excellent performance.

VD Series | Vacuum drying chambers for non-flammable solvents

A BINDER vacuum drying oven of the VD series convinces with its gentle drying thanks to precise temperature control. BINDER's patented expanding shelf system ensures optimum heat transfer. The position of the shelves is adjustable and the interior enclosure is easy to clean.

Advantages

1. Delicate and quick drying
2. Optimal heat transfer thanks to large heat-conducting plates
3. Safe work thanks to a proven safety concept
4. Also available as an option as a complete modular system consisting of vacuum pump and pump cabinet

Essential features

• Temperature range: ambient temperature +9 ° C to +220 ° C
• Controller with digital pressure and temperature display
• Scheduled drying monitoring with automatic ventilation at the end of the process
• Internal data logger, reading of measured values in open format via USB possible
• 1 expanding aluminum shelf, individually positionable
• Inert gas connection
• Spring loaded safety glass with shatter protection
• Large window, with optional interior lighting
• Computer interface: Ethernet
• 2 switching outputs 24 V DC (max. 0.4 A)

Optional equipment

• Touchscreen controller - graphic display of the most important process parameters
• Shelves - selection of aluminum or stainless steel shelves depending on test requirements
• Analog output for pressure and temperature signals - for external control and evaluation of process parameters, possible integration into own systems
• Universal ventilation - selection of different ventilation with air or inert gas
• Cable entry DN 40 - for the introduction of external measuring systems
• Multi Management Software APT-COM - management, recording and documentation of device parameters
• Services - wide range of services ensuring the correct functioning of devices

VDL Series | Vacuum drying chambers for flammable solvents

A BINDER safe vacuum drying oven of the VDL series guarantees maximum safety when drying organic solvents. Explosion-protected device, with classification in accordance with ATEX directive 2014/34 / EU: EX II 2/3 / - G IIB T3 Gb / Gc / - X.

Advantages

• Delicate and quick drying
• Optimal heat transfer thanks to large heat-conducting plates
• Safety at work thanks to an ATEX compliant concept
• Also available as an option as a complete modular system consisting of vacuum pump and pump cabinet

Essential features

• Temperature range: ambient temperature +9 ° C to +110 ° C
• ATEX conformity of devices: EX II 2/3 / - G IIB T3 Gb / Gc / - X
• Intuitive touchscreen controller with digital pressure and temperature display
• Scheduled drying monitoring with automatic ventilation at the end of the process
• Internal data logger, reading of measured values in open format via USB possible
• Pressure switch for heating authorization from

• 2 expanding aluminum shelves, individually positionable
• Selection of different ventilation with ambient air or inert gas
• Additional universal cable entry with flange connection DN 16, for positioning sensors or supply lines in the chamber
• Spring loaded safety glass with shatter protection
• Large porthole
• Computer interface: Ethernet

Optional equipment

• Shelves - selection of aluminum or stainless steel shelves depending on test requirements
• Analog output for pressure and temperature signals - for external control and evaluation of process parameters, possible integration into own systems
• Universal ventilation - selection of different ventilation with air or inert gas
• Cable entry DN 40 - for the introduction of external measuring systems
• Multi Management Software APT-COM - management, recording and documentation of device parameters
• Services - wide range of services ensuring the correct functioning of devices
