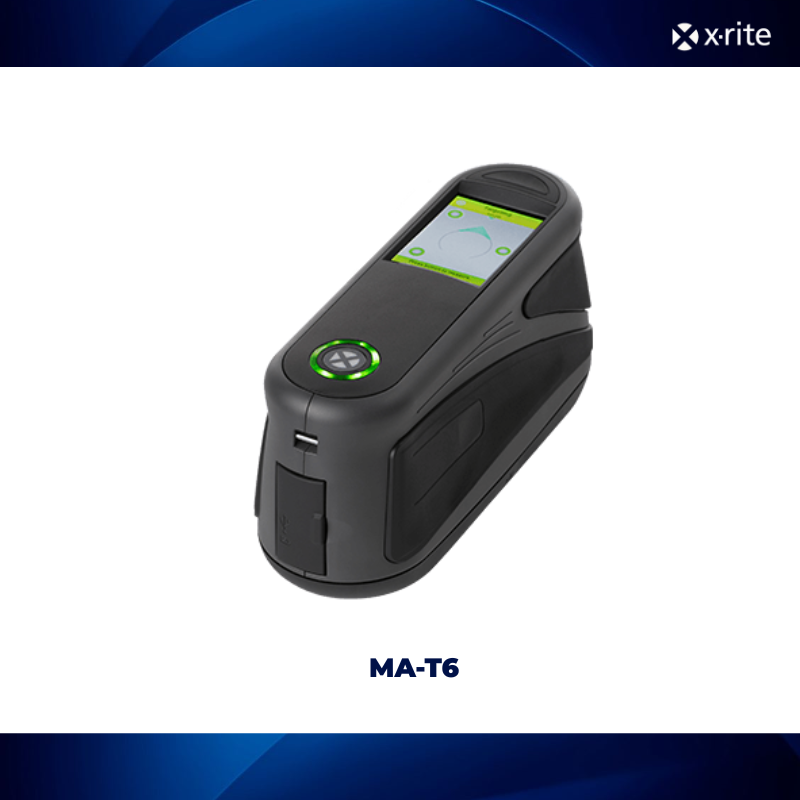

MA-T6 / MA-T12 multi-angle spectrophotometers

MA-T6 / MA-T12

Portable spectrophotometers ideally suited for measuring the apparent color of effect paints and varnishes containing metallic, pearlescent or interference pigments.

Contactez-nous

CONTACT

SOCIETE

Description

Portable spectrophotometers ideally suited for measuring the apparent color of effect paints and varnishes containing metallic, pearlescent or interference pigments.

  • Illuminants A, C, D50, D65, F2, F7, F11 and F1.
  • Standard 2 ° and 10 ° observers.
  • Spectral range from 400 to 700 nm (resolution of 10 nm).
  • Storage of 200 references with tolerances and 1000 measurements.
  • Colorimetric scales: L * a * b *, L * C * h °, ΔE *, ΔECMC, ΔE DIN6175, ΔE2000.
  • Many optional accessories available according to your applications.

Templates MA-T6 MA-T12
Light source

RGB color camera

 RGB color camera
Aspecular angles 6 measuring angles 12 measuring angles
Repeatability on white 0.02 ΔE * 0.02 ΔE *
Inter-instrument agreement 0.18 ΔE2000 avg. on BCRA 0.18 ΔE2000 avg. on BCRA
Data interface USB 2.0 USB 2.0
Colorimetry software

EFX QC optional

EFX QC optional

Video presentation :

X RITE SPECTROCOLORIMETRES MULTI ANGLES FAMILLE MA T

Product Details
MA-T6 / MA-T12
