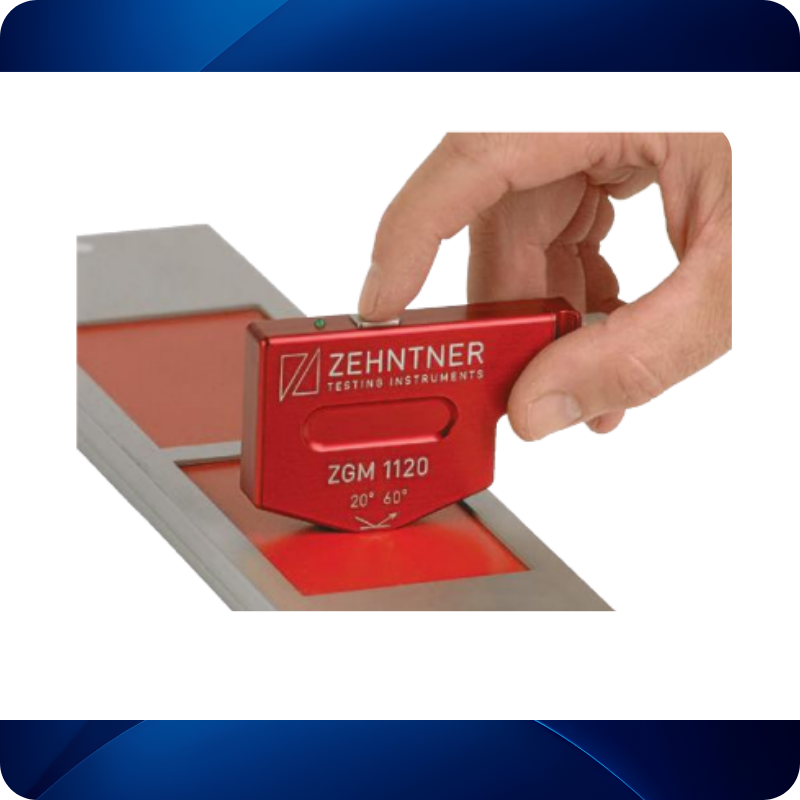

ZGM 1120 PC-controlled gloss meters | Labomat
ZGM 1120 PC-controlled gloss meters
Controlled via the GlossTools software, these ultra compact glossmeters available in 1, 2 or 3 angle versions are used to measure parts of various and varied shapes.
Description
Controlled via the GlossTools software, these ultra compact glossmeters available in 1, 2 or 3 angle versions are used to measure parts of various and varied shapes.
- Measuring range: 0-2000 UB.
- No display, measurement data directly transmitted to PC with GlossTools software via USB interface.
- The GlossTools software makes it possible to display in real time and simultaneously the statistics (min, max, average, standard deviation) relating to the different geometries and the good / bad indication according to the set tolerances.
- Various measurement modes: single or multiple measurements, automated series of measurements, continuous measurements.
- Measuring surface: 20 ° 4.2 × 2 mm / 60 ° 4.7 × 2 mm / 85 ° 15 × 2 mm / 20 ° Tappi 10 × 11 mm / 45 ° DIN 12 × 8 mm / 75 ° DIN 31 × 7 mm / 75 ° Tappi 14 × 6 mm.
- According to DIN 67530, ISO 2813, ASTM D523, ASTM D2457, BS 3900, ASTM C 346 (45 ° models), ISO 8254-1 (models
- 75 °), Tappi T 480 (75 ° models).
- Supplied in case with standard, GlossTools software, USB cable and calibration certificate.
Templates:
- monoangle: 20 ° ZGM 1120.2, 60 ° ZGM 1120.6, 85 ° ZGM 1120.8, 20 ° Tappi ZGM 1120.2T, 45 ° DIN ZGM 1120.4D, 75 ° DIN ZGM 1120.7D or 75 ° Tappi ZGM 1120.7T.
- 2 angles: 20 ° / 60 ° ZGM 1120.26, 20 ° Tappi / 75 ° Tappi ZGM 1120.2T7T, 45 ° DIN / 75 ° DIN ZGM 1120.4D7D.
- 3 angles: 20 ° / 60 ° / 85 ° ZGM 1120.268.
